Boring diameter capacity: 100 mm
Drilling radius: 3000 mm
Work-piece height range: 440-2100 mm
Spindle taper: MT 6
Spindle turning speed range: 18-1800 rpm

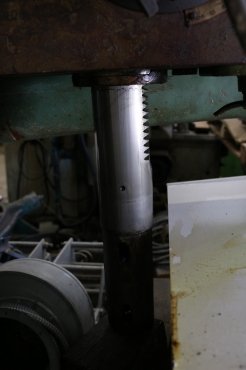

Quill stroke: 400 mm
Surface area: 3160x1500 mm
Boring feed range: 0,0375 - 2 mmm/min
Distance spindle - column:
-Min.: 400 mm
-Max.: 2850 mm
Total power requirement: 13 kW
Machinery dimensions: 4390x1550x4130 mm
Machinery weight: 13200 kg
