Min/Max column to spindle centre 16"/79 1/2"

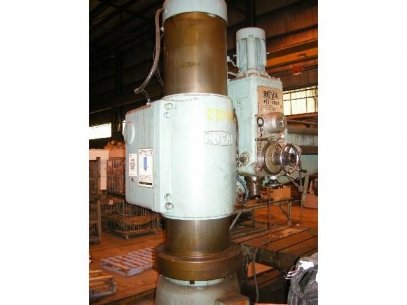

Column diameter 19-11/16"
Min/Max base to spindle 19/66-7/8"
Spindle taper 5 MT
Spindle speeds(16) 20-2180 RPM
Spindle feeds(18) 0.003"-0.125"
Tap leads 8 TO 27 TPI
Travers of driil head on arm 63-3/8"
Travel of arm 33-5/8"
Spindle travel 15-3/4"
Drilling capacity steel 3"
Drilling capacity cast iron 3-5/8"
Spindle motor 10 HP
Elevating motor 5 HP
Approximate height to top of column 116-3/4"

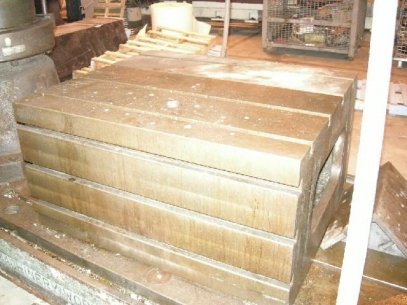

Equipped with: Electric clamping to head column and arm, Preselect speeds, Coolant pump, Box table
