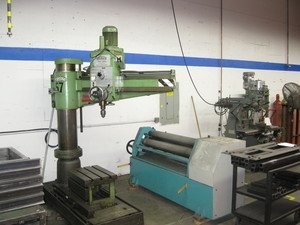

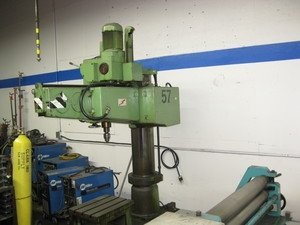

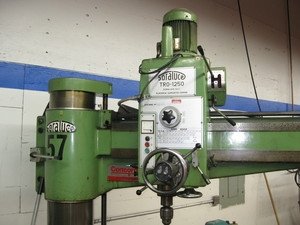

Soraluce TRO 1250 Radial Drill

SPECIFICATIONS:

MODEL: TRO 1250

11.81” COLUMN AND 49.21” ARM:

DRILLING CAPACITY:
MILD STEEL: 2”,
CAST IRON: 2 1/8”,

MOTOR SIZE: 5 HP,
SPEEDS: (12) 29 – 1700 RPM,
FEEDS: (6) .005” - .013”,
SPINDLE: #5 M.T.,
SPINDLE STROKE: 11 ¾”,
POWER DOWNFEED ON SPINDLE,
HEAD TRAVEL ON ARM: 37 ½”,
RISE AND FALL OF ARM ON COLUMN: 27.55”,
MAX. WORKHEIGHT TO BASE: 52 ¼”,
MAX. WORKHEIGHT TO TABLE: 39 ¼”,
POWER RISE AND FALL OF ARM ON COLUMN,
POWER CLAMPING OF HEAD, ARM, AND COLUMN,

BASE WORKING AREA: 51 ½” X 29 ¾”,
* BOX TABLE
