T-slotted base and work table,

#1110Yamazen YMZ 8’ x 19” Radial Drill

S/n:81215
MFG:1981
Model:TRE-2500D

SPECIFICATIONS:

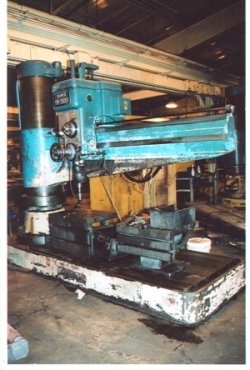

8’2” x 20 7/8” YAMAZEN YMZ Radial Drill Model TRE-2500D, S/N 81215, New 1981

Arm length:8’2”
Column diameter:20 7/8”
Taper in spindle:No. 5 M.T.
Drilling capacity:
Solid steel:3 ¾”
Cast iron:4-½”
Boring in steel:10 5/8”
Boring in cast iron:13 3/8”
Diameter of spindle: 3 1/8”
Diameter of spindle quill:4 ½”
Spindle travel:19 5/8”
Max. distance, column to spindle center:99 3/16”
Min. distance, column to spindle center:16 1/8”
Horizontal travel of spindle head on arm:83 1/16”
Max. distance, spindle to base:68 7/8”
Min. distance, spindle to base:17 ¾”
Vertical travel of arm on column:33 15/32”
Size of base:47 ¼” x 137 ¾”
Height of base:11”
24 Spindle speeds:20-2000 RPM
18 Feeds:.0015-.125 IPR
Tap leads:8,11 ½,14,18,27 T.P.I.

EQUIPPED WITH:
T-Slotted base, 20”x 30”x 19” High T-Slotted box table, (3)T-Slots in top, (2) T-Slots in side
Power clamping, Work light, 5 M.T. Quick-Change holder, Quick change tool w/drill chuck, 5 H.P. arm elevation Motor, 15 H.P. Spindle drive Motor, 3/60/440 Volt electrics w/ disconnect

Max. height above column cap: 115 1/8”
Max. height above head: 135 1/8”
Approximate weight: 25,000 lbs.

Machine Location:Wilmington, DE
