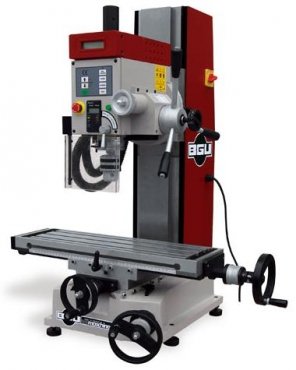

MK 3 tool holder
Stepless drilling spindle speed adjustment
Head tilts right and left (for cutting threads)
with large T-slot table top, 550 x 160 mm
Digital display of the spindle speed
Digital display of the spindle axis travel (quill stroke)
Brushless DC motor
high-precision fine-pitch gears for horizontal milling operations
suitable for end milling up to 50 mm Ø
Illumination for drilling and milling operations
Specifications:
Electric motor drive 1,0 kW P1
Voltage 230 V
Drilling capacity on solid material 25 mm
Tapping capacity up to max. 12 mm
Tool holder MK 3
Outreach 230 mm
Spindle stroke 80 mm
Spindle height above worktable max. 350 mm
Stepless spindle speed (+/- 10%) 100-1750 RPM
Drilling head incline angle max. -30° - +50°
Milling table size 550 x 160 mm
T-groove size 12 mm
Travel of worktable along the x-axis max. 300 mm
Travel of worktable along the y-axis max. 160 mm
