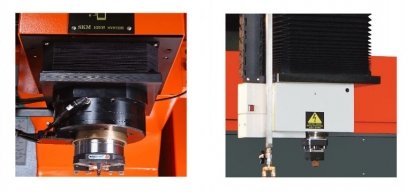

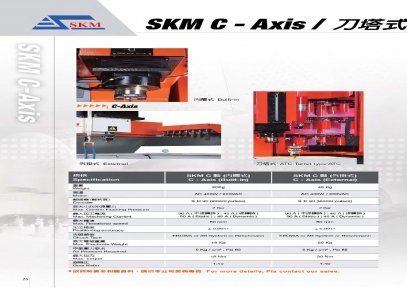

SKM C - Axis (In-built, External)
Specification C - Axis
Weight 28 Kg ( Including AC motor, cover)
Motor AC 400W / 200VAC
Encoder S-D 90
Max. Centric Flushing Pressure 2 Bar
Max. Machining Current 90 A ( Static ) ; 45 A ( Dynamic )
Max. Rotational speed 60 rpm
Positioning accuracy ± 0.001°
Chuck Type EROWA or 3R System
Max. Electrode Weight 18 Kg
Max. Torque 18 Nm
Air Pressure Required 6 Kg / cm2 , Psi 85
Gear Ratio 1 : 15


Specification SKM C - Axis (External)
Weight 35 Kg
Motor AC 400W / 200VAC
Encoder S-D 90
Max. Centric Flushing Pressure 2 Bar
Max. Machining Current 90 A ( Static ) ; 45 A ( Dynamic )
Max. Rotational speed 60 rpm
Positioning Accuracy ± 0.001°
Chuck Type EROWA or 3R System
Max. Electrode Weight 20 Kg
Max. Torque 30 Nm
Air Pressure Required 6 Kg / cm2 , Psi 85

-
