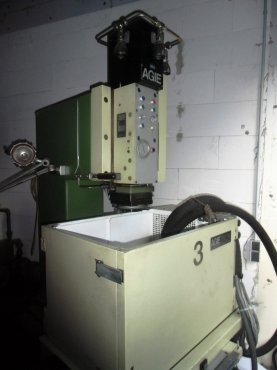

EDM - spark erosion machine -second hand-
AGIE Agietron EMS 2.20
(1981)

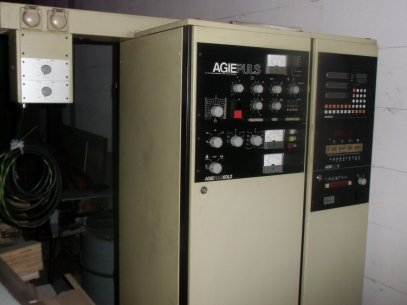

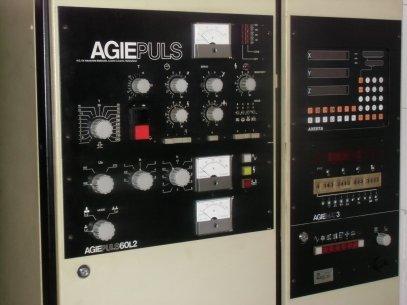

Type of generator: 30L/DDL
normally: 30A
electrical power BOOSTER: B100
Specifications:
max. dimension of workpiece W x D x H: 490, 370, 340 (Spannraum)
max. weight of workpice in nthe middle of the table: 6000 N (600 kp)
max force of piston: 800 N (80 kp)
feed range piston: 200 mm
feed range x-axis: 320 mm
working range x, y, z: 320, 220, 385 mm
rough adjustment 2: 185 mm

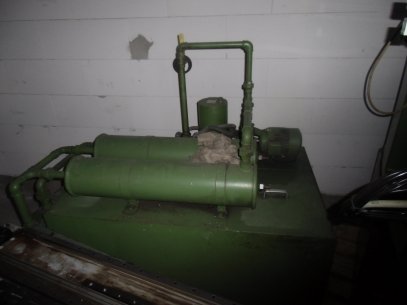

aggregat of dielectricum: DA 2.10 / DA 2.20
or: 1000 / AFI 6
1700 / AFI 10
