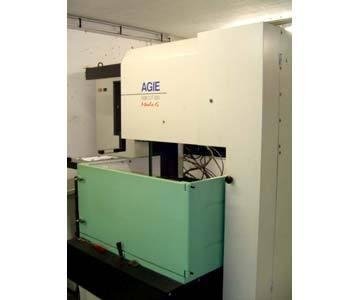

Type: AGIECUT 200
Working table:
Length: 720 mm
Width: 500 mm
Max. dimensions of work piece:
Length: 860 mm
Width: 580 mm
Height: 250 mm
Table load max.: 400 kg
Longitudinal traverse (X-axis): 400 mm
Cross traverse (Y-axis): 250 mm
Taper-cut: +/- 30°
Diameter of electrode wire:
from: 0.03 mm
up to: 0.30 mm
Dielectric aggregate:
Width: 1850 mm
Depth: 950 mm
Height: 2000 mm
Empty weight: 370 kg
Total power required: 6.10 kVA
Generator:
Weight of the generator about: 155 kg
Machine's weight about: 2350 kg
Overall dimensions machine:
Length: 1700 mm
Width: 1500 mm
Height: 2100 mm
