Travel X - 320
Travel Y - 250 mm
Travel Z - 200 mm
WIRE DIAMETER 0.15-0.30 mm
WIRE TENSION 30-250 Kg
U/V AXES TRAVEL 80 mm
TAPER CAPACITY +/- 20º

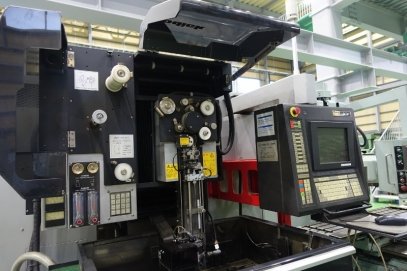

CNC SODICK LQ1W, WINDOWS BASED with 14" LCD SCREEN
RS-232C PORT INTERFACE & 1.44MB FLOPPY DISK DRIVE
40 AMP POWER SUPPLY, AUTO TEMPERATURE CONTROL
EF4 ELECTROLYSIS FINE FINISH CIRCUIT,
PENDANT CONTROL
COMPLETE DIELECTRIC FILTRATION SYSTEM
ALL AVAILABLE ACCESSORIES AND MANUALS
max. Workpiece size X: 500 mm
max. Workpiece size Y: 450 mm
max. Workpiece size Z: 200 mm
max. Workpiece weight: 450 kgs
Table size X: 600 mm
Table size Y: 400 mm
WIRE FEED SPEED 9.8"/SEC
MACHINE DIMENSIONS (APPROX.) 2260 x 2210 x 2032 mm
MACHINE WEIGHT (APPROX.) 3000 Kg
with automatic wire threading

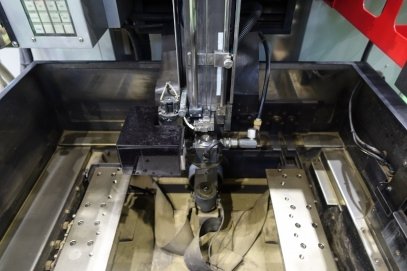

Cutting in the waterbath and sprinkling
