6.25" X 27" HEY #3 DOUBLE END FACING & CENTERING MACHINE




General Specifications
Max. Diameter of work 6.25"
Min. Diameter of work .25"
Max. Workpiece length 27"
Min. Length of work 3"
Max. Swing over bed 21"

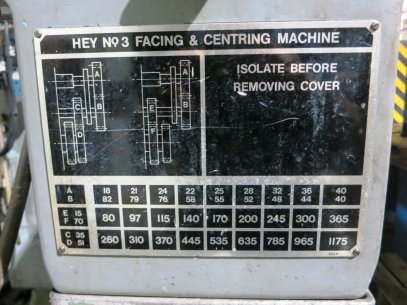

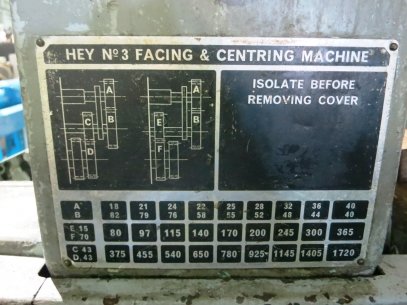

Spindle Speeds:
Left spindle 80-1175 RPM
Right spindle 80-1720 RPM
Length of fine adjustments to cutter 2"

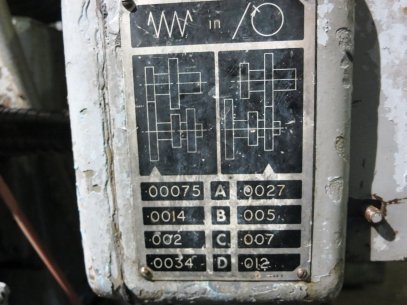

Feed rates in thousandths of an inch per rev. of spindle
(8) .0014-.021 IPM
Rapid traverse rate 250"/min
Spindle drives:
Left Spidle 10 HP
Right Spindle 15 HP Machine dimensions 45" x 86" x 70"H Weight (Approx.) 7600 Lbs



Motor Specifications
Not Available



Equipped With
(2) Pneumatic self centering vices
(2) Facing & Centering cutter bodies
(1) Set-up Gears on the machine
Coolant Pump


Serial Number
2827-534 Year
1968 Location
PROSPECT HEIGHTS, IL

-
