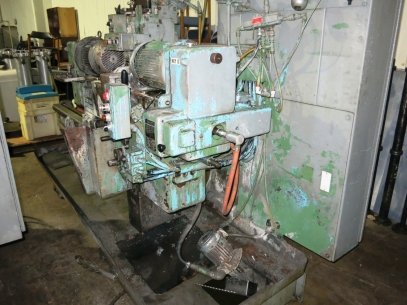

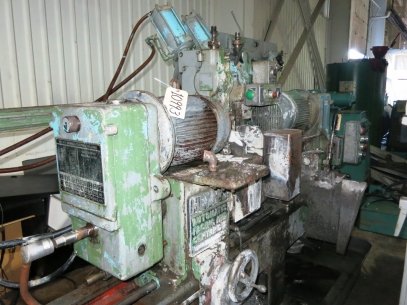

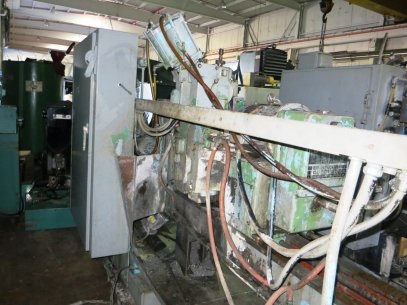

6" X 51" HEY #3 DOUBLE END FACING & CENTERING MACHINE




General Specifications
Max. Diameter of work 6.25"
Min. Diameter of work .25"
Max. Workpiece length 51"
Min. Length of work 3"
Max. Swing over bed 21"
Spindle Speeds 80-1175 RPM
Length of fine adjustments to cutter 2"

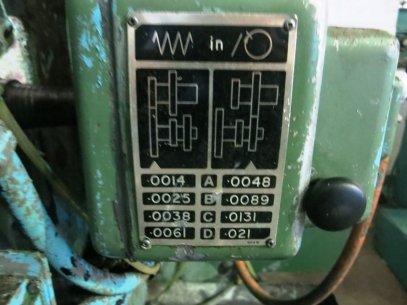

Feed rates in thousandths of an inch per rev. of spindle
(8) .0014-.021 IPM
Rapid traverse rate 250"/min
Spindle drives:
Left Spidle 10 HP
Right Spindle 15 HP
Machine dimensions 45" x 86" x 70"H Weight (Approx.) 7600 Lbs



Motor Specifications
Not Available



Equipped With
(2) Pneumatic self centering vices

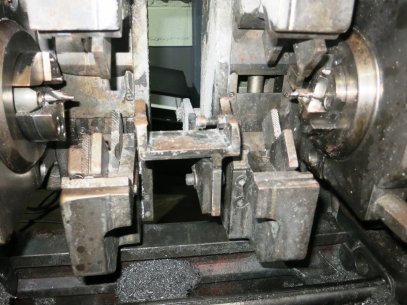

(2) Facing & Centering cutter bodies
(1) Set-up Gears on the machine
Coolant Pump


Serial Number
2827-757 Year
1977 Location
PROSPECT HEIGHTS, IL

-
