For Sale Listings
CUMAQ, VECTOR35, CNC PLASMA CUTTERS, FLAME CUTTING EQUIPMENT
  • Condition:New
  • Category:FLAME CUTTING EQUIPMENT
  • Type:CNC PLASMA CUTTERS
  • Manufacturer:CUMAQ
  • Model:VECTOR35
  • YOM:2012
  • Location:Spain, España
  • Price:On request
  • Stock No:-
  • Control:CNC
  • ID:AS20322
Description:

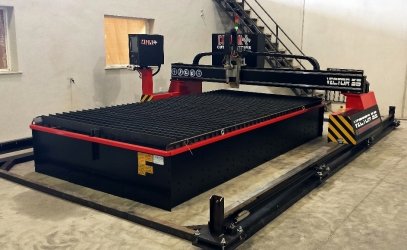

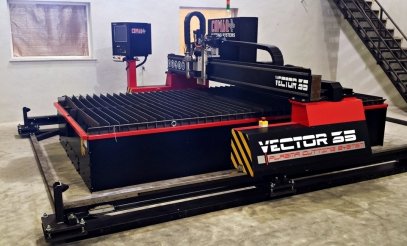

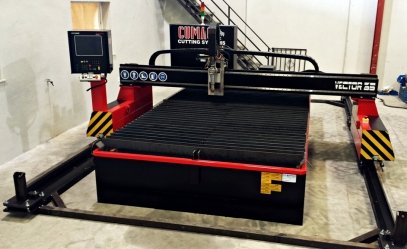

Gantry CNC Plasma Cutting Machine of dimensions 8000 x 3000 mm with equipment plasma 100 A (Max. piercing 20 mm, model: Cutmaster A80 Thermal-Dynamics), cutting Software FastCAM and cutting table.With CNC Hypertherm.
Specifications:
o Total width: 4.000 mm

o Total length: up 10.000 mm (possible 6.000, 8.000 and 10.000 mm)

o Net cutting width: 3.000 mm

o Net cutting length: up 8.000 mm (possible 4.000, 6.000 and 8.000 mm)

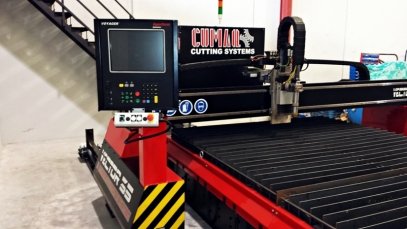

- CNC system: Hypertherm CNC Voyager III with SERCOS Interface Bus.

- HMI Display: Color touch screen 15” TFT with keyboard.

- Number of axis: 4 (Gantry with synchronous dual drive system)

- Driver system: Bosch Rexroth Indradrive C with SERCOS bus (Optic fiber communication).

- Motor: AC Bosch Rexroth Indradrive brushless motor of 750W.

- Longitudinal guide: Mechanized railway rail type ENSIDESA TR45.

- Transversal guide: Double roller linear guide ways THK LM.

- Motion transmission X-Y: Atlanta precision rack & pinion M3 with Atlanta high precision servo reducers.

- Motion transmission Z: INA-FAG Linear actuator with precision ball screw.

- Robotic collision detector for the cutting torch with anti-crash system.

- Automatic Arc Voltage Torch Height Control integrated in the CNC system.

- Speed: Up 40 m/min

- Safety system: compliance CE with safety of machinery ISO 13849-1 from European Commission Machinery Working Group. Safety equipment from PILZ.
Dimensions:
8000 x 3000 mm
Weight:
3000 kg
