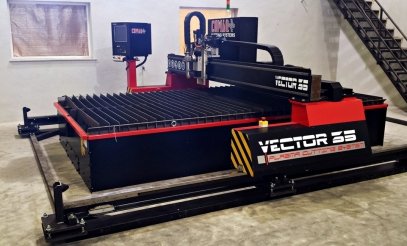

New Gantry CNC Plasma Cutting Machine of dimensions 8000 x 3000 mm with equipment High Definition plasma 400 A (Max. piercing 50 mm, model: Ultra-CUT 400 Thermal-Dynamics), cutting Software FastCAM and cutting table. With CNC Hypertherm.
Specifications:
Technical details:
- Dimensions:
o Total width: 4.000 mm
o Total length: up 10.000 mm (possible 6.000, 8.000 and 10.000 mm)
o Net cutting width: 3.000 mm
o Net cutting length: up 8.000 mm (possible 4.000, 6.000 and 8.000 mm)
- CNC system: Hypertherm CNC Voyager III with SERCOS Interface Bus.

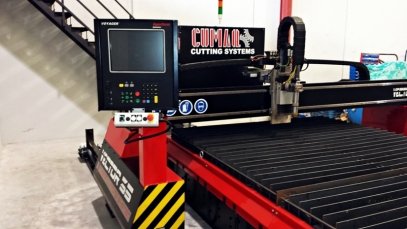

- HMI Display: Color touch screen 15” TFT with keyboard.
- Number of axis: 4 (Gantry with synchronous dual drive system)
- Driver system: Bosch Rexroth Indradrive C with SERCOS bus (Optic fiber communication).
- Motor: AC Bosch Rexroth Indradrive brushless motor of 750W.
- Longitudinal guide: Mechanized railway rail type ENSIDESA TR45.
- Transversal guide: Double roller linear guide ways THK LM.
- Motion transmission X-Y: Atlanta precision rack & pinion M3 with Atlanta high precision servo reducers.
- Motion transmission Z: INA-FAG Linear actuator with precision ball screw.
- Robotic collision detector for the cutting torch with anti-crash system.
- Automatic Arc Voltage Torch Height Control integrated in the CNC system.
- Speed: Up 40 m/min
- Safety system: compliance CE with safety of machinery ISO 13849-1 from European Commission Machinery Working Group. Safety equipment from PILZ.
