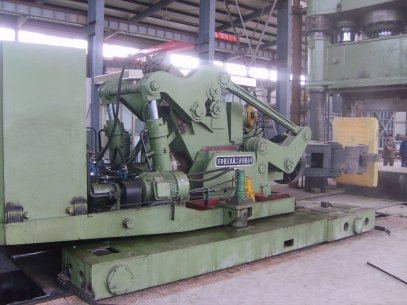

T31 series Forging Manipulator is usually using with our forging hammer or forging press, with the help of Forging Manipulator, the speed and quality of forging speed will improve a lot.
Specifications:
T31 Forging Manipulator:
Forging manipulator has fully hydraulic and mechanical-hydraulic mixed driven types. Forging manipulator is used to operate open die forgings under hammers and presses. It has manipulator walk, clamp clamping, the clamp head rotate, clamp frame lifting, clamp frame rotating etc functions.

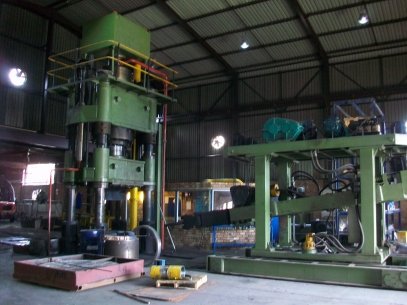

Forging Manipulator is usually being used with our forging hammer or forging press. Forging Manipulator is used to load and transport the forgings and billets from furnace, which can greatly shorten the handing time, increase the productivity, reduce labor intensity, realize forging production mechanization.
Features of Forging Manipulator:
1. Efficient forging process and high performance.
2. Operational costs will be reduced significantly.
3. Rapid movements with highest precision will be achieved.
4. The quality of the forgings as well as the capacity of the production line can be significantly increased.
Parameters of Forging Manipulator:
Model: T31-10
Norminal load force (KN) : 100
Max holding moment (KN*m) : 250
Min holding range (mm) : 230
Max holding range (mm) : 1000
Min clamp center height (mm) : 800
Max clamp center height (mm) : 1700
Clamp rod lifting speed (m/min) : 6
Clamp up degree (°) : 7.5
Clamp down degree (°) : Touch ground
Clamp head over hang (mm) : 2200
Clamp rotate speed (m/min) : 15
Clamp head max rotate diameter (mm) : 1980
Manipulator moving speed (m/min) : 20
Manipulator rail distance (mm) : 3300
Working oil pressure (MPa) : 15
Total motor power (kw) : 130
Machine outside size (mm) : 1100*4400*4000
