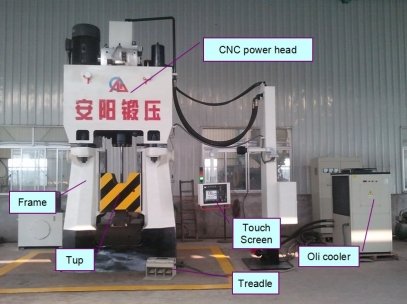

Introduction of CNC Hydraulic Die Forging Hammer:
CNC Hydraulic Die Forging Hammers are widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc, especially for the precision forging field. CNC hydraulic die forging hammer complied with low carbon production, low hammer running cost production and high efficiency production etc high requirements in modern forging industry.
Features of CNC Hydraulic Die Forging Hammer:
1. Programmable hitting
2. Precise energy control
3. High forging accuracy
4. High blow frequencies
5. Simple and safe operating
6. Low forging vibration
7. Optimum die life and hammer rod life
8. Realize automatic production line
Parameters of CNC Fully Hydraulic Open Die Forging Hammer:
Model: C92K-100
Hit energy (KJ) : 125
Weight of falling parts (kg) : 8500
Max hit number (min-1) : 70
Hit stroke (mm) : 615-920
Working oil pressure (MPa) : 20
Main motor power (KW) : 2*132
Machine weight (kg) : 195000
Specifications:
C92K series CNC Fully Hydraulic Die Forging Hammer is one of our main products, our CNC Hydraulic Die Hammer is widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc.
