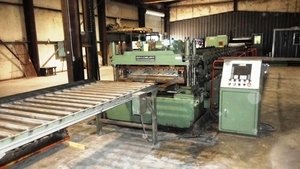

Bradbury 16 Stand Rollformer, 48" Roll Space, 17" Horizontal Centers, 100 FPM, 30 HP, #1579

#846 Blanchard 42” Vertical Rotary Surface Grinder

S/n:12353
MFG:1968
Model:22D-42

SPECIFICATIONS:
Magnetic Chuck Diameter:42”
Magnetic Chuck Life:3/8”
Swing Between Coolant Guards:48”
Maximum Work Height:18”
Table Load Capacity:3000 Lbs
Segmented Grinding Wheel Speed:720 RPM
Segmented Grinding Wheel Size, Option:22”
Mag. Chuck Speed Range (6):6-33 RPM
Power Down Feed Range:.004 to .080 IPM
Spindle HP:50 HP

Overall Dimensions, L x W:11’8” x 7’
Overall Height:10’1”
Approximate Weight:14,500 Lbs

EQUIPPED WITH:
Airglow Cleaner, Variable Neutrofier Chuck Control, Dresser, One Shot Lubrication

MACHINE IS SOLD AS IS

Machine Location:Cincinnati, OH
