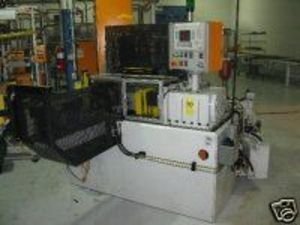

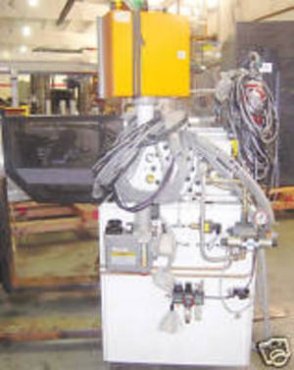

Pee Wee P20 CNC Thread Roll Former, New 2002

Item


Pee Wee P20 CNC Thread Roll Former, New 2002

Model: P20 CNC

S/N: 20020002


Specs


Siemens Simatic Control, 2 In.Cap., 20 Ton, 2-Die Head, 2-1/8 In. Spindle Dia., 6In. Max Infeed


Tech Data: (from manual)

Height of rollspindles above machine bed: 160 mm

Smallest distance between rolling spindles: 130 mm

Biggest distance between rolling spindles: 280 mm

Tool diameter: (max) 210 mm, (min) 130 mm

Spindle diameter (standard) 80 mm, (sonder) 54 mm

Acceptance length of spindles: 200 mm

Smallest rollable diameter ca: 5mm

Biggest diameter ca.: 140 mm

Lead (max) 12 mm

Length of thread infeed system (max) 180 mm

Carriage travel: 145 mm

Pivoting angle of rollspindles (type SR): +/-8 degrees

Rolling pressure: 10-200 kN

RPM of spindles: 0-90 U/min

Feed of slide (max): 50 mm/sec

Dims (mm) 1660L x 729W x 1545 H, 6295 lbs


Ticket: 8723

Additional information will be posted as it becomes available.

PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION

Subject To Prior Sale
