Offer extreme degrees of forming, complex geometries
and fast tool changing. The tool sequence is positioned horizontally
or vertically by a servo motor. With up to eight forming stages,
additional clamping unit and hydraulic-numerical control, it is able to
fulfill virtually any requirements.

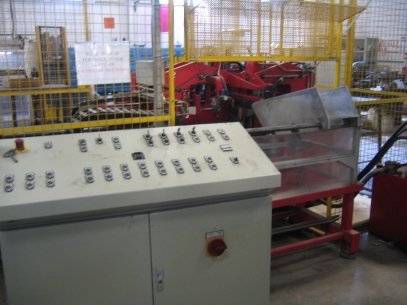

It is controlled via a touch panel with integrated data storage, which
you can use to retrieve and save machine parameters.
Specifications:

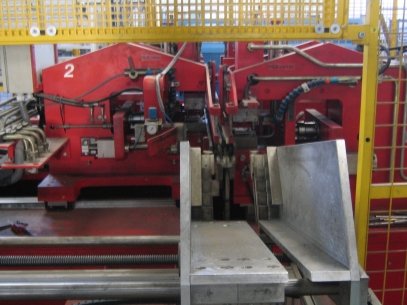

fully automatic special machine for shaping and threading pipe ends. Combined with charging unit, forming two axial heads, two heads threading a transfer system pilgrim step type and a discharge unit.
Capacity
Pipes: diameter of 7 to 12 mm.
-Thickness maximum 1.5 mm.
-length Maximum 60 mm form.
-length maximum 40 mm screw.
-length of maximum 760 mm tubes.
• distance between two rings minimum 190 mm.
-Cycle approximately 7 seconds to a length of shaped and threaded over 20 mm.
Machine data:
-pressure nominal 250 bar.
-pressure Working 200 bar.
-Voltage 400 Volt 50 Hz. 3 phases.
Length 2,500 mm.
I anchor 1,800 mm.
1,400 mm high.
weighing about 2,650 Kg.
Lubrication unit MSP-1H (2).
Microlubrication units.
Minimal lubrication unit without loss of oil.
Lubrication outside the tube and the tools before the forming operation.
Each includes an injection point.
Includes tank 25 L. SCH M-25-H
The machine described includes the requested changes. Bone a different feed system parts without chain is best and fastest way to a steady stream of progress is used. Efforts are also more space for changing tools.
Shaped axial tools.
2 SKB-420-10 jaws 10 mm. in diameter and 80 mm length.
Two forming tools for forming ring adjustable length 5 to 20 mm. for the 9.4 mm tube. diameter.
2 TWBM10-13 studsaver dieheads by roll forming exterior threading tube 10 to 12 mm. diameter.
TR13 one set of rollers for threading of 13 mm. adaptable to the head diameter TWB10-13.
Tools for making and internal thread formed portavex.
One forming tool (only one side of the tube) and a length forming.
1 SBK 420-10 10 10 mm jaws. in diameter and 80 mm length with the end of the tube integrated form.
Carrier-827-110 1 GRSM male threading inside M4 to M10. interchangeable male
Machine equipped by the standards of the EEC.
