Specification Description
Working Dimensions 60" Diameter x 72" H
Operating Temp 2400 degrees F
Strokes 412H-11
Roughing Pumps 10 hp/ 300 CFM
Equipped With:
REBUILD:

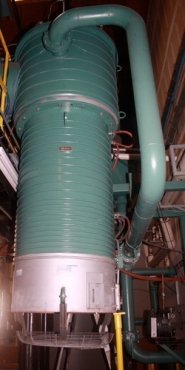

HOT ZONE: THE ORIGINAL GRAPHITE HOT ZONE HAS BEEN REPLACED WITH MOLLY.
NEW HEATING ELEMENTS AND INSULATION INSTALLED.
NEW INNER WALL (WATER JACKET WALL)
INSTALLED SPENCER TURBINE FAN W/ (2) HEAT EXCHANGER UNITS FOR QUICK COOL DOWN
REPLACED DIFFERENTIAL PUMP
Leak up rate was 5.8 microns in 60 minutes
Last Leak up rate was done on 9/01/2010
1000*F & 1600*F +/- 10 in load zone 1
+/- 25 in load zone 2
furnace can pump to 1 X 10 to -5 level

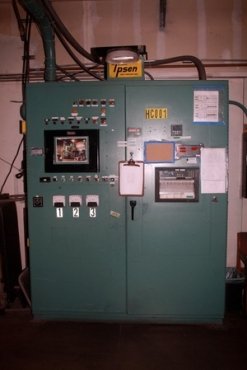

Chart Recorder
Channels 1 & 2 record vacuum levels
Channel 3 records overtemp. TC
Channel 4 records control TC
Channels 5 - 12 records load TC's
Channel 13 is used for SPF argon pressure in tool

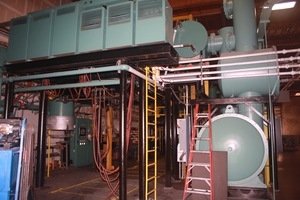

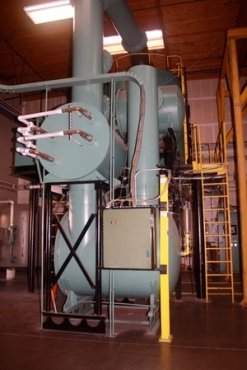

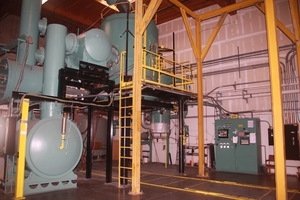

This unit was upgraded in 2009. It is in beautiful condition and is under power and available for your inspection.
