Stock-No. 1106-SF268

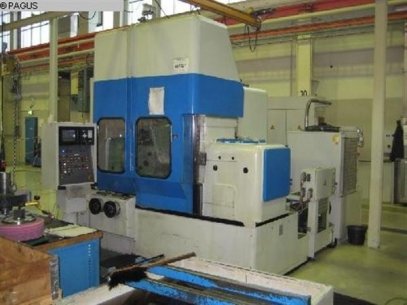

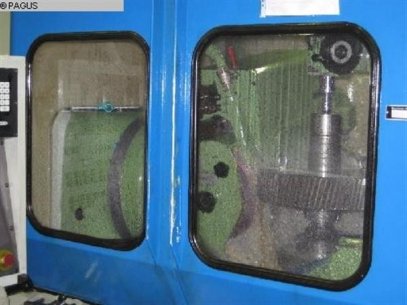

Type of machine Gear Grinding Machine

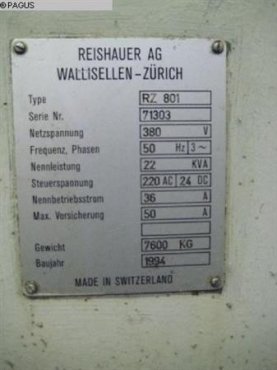

Make REISHAUER
Type RZ 801
Year of manufacture 1994

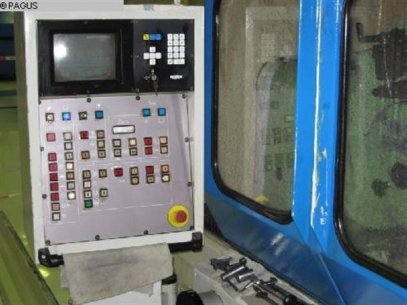

Type of control CNC
Storage location Pagus NL. Jena Germany
Country of origin Schweiz
Specifications:
Technical details
max. wheel diameter 820 mm
gear width 250 mm
max. module 8
min. module 0,5

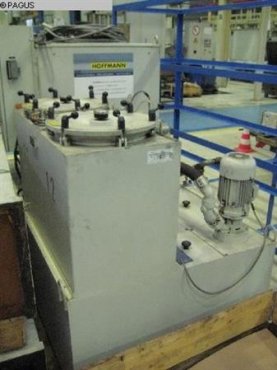

accessories: Schleifölanlage Hoffmann DF2/2 Bj.2007
z-axis 300 mm
clamping length max. 1170 mm
max. number of teeth 600
min. number of teeth 10
max.helical angle +/-30 °
workpiece weight 400 kg

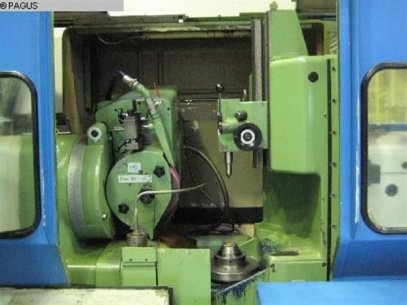

grinding worm dia. 280 - 400 mm
grinding worm turning speeds: at grinding 1100 - 1650 U/min
accessories: Kühlanlage
total power requirement 22 KVA
weight of the machine ca. 7600 t
dimensions of the machine ca. 2980 x 1910 mm
