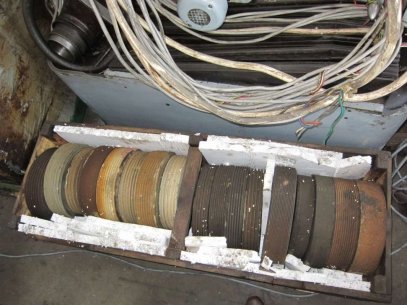

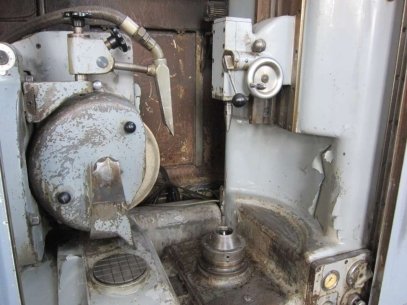

Gear grinding machine Reishauer ZB made in Switzerland. Accessories are available.
Specifications:
Gear diameter: 54-700 mm
Max gear width: 280 mm
Distance between centres: 256-570 mm
Number of teeth:
-Min: 16
-Max: 240
Module:
-Min: 1.5
-Max: 7
Pressure angle:
-Min: 14 degrees 30 min
-Max: 30 degrees
Max helix angle: +/- 30 degrees
Helical pitch with 30 teeth:
-Min: 404
-Max: 7725 mm
Slide stroke: 290 mm
Max longitudinal crowning with a pressure angle of 20 degrees: 0,022 mm
Max work-piece weight incl. fixing: 300 kg (approx.)
Max diameter of grinding wheel: 280-400 mm
Max width of grinding wheel: 104 mm
Total power requirement: 9,6 kW
