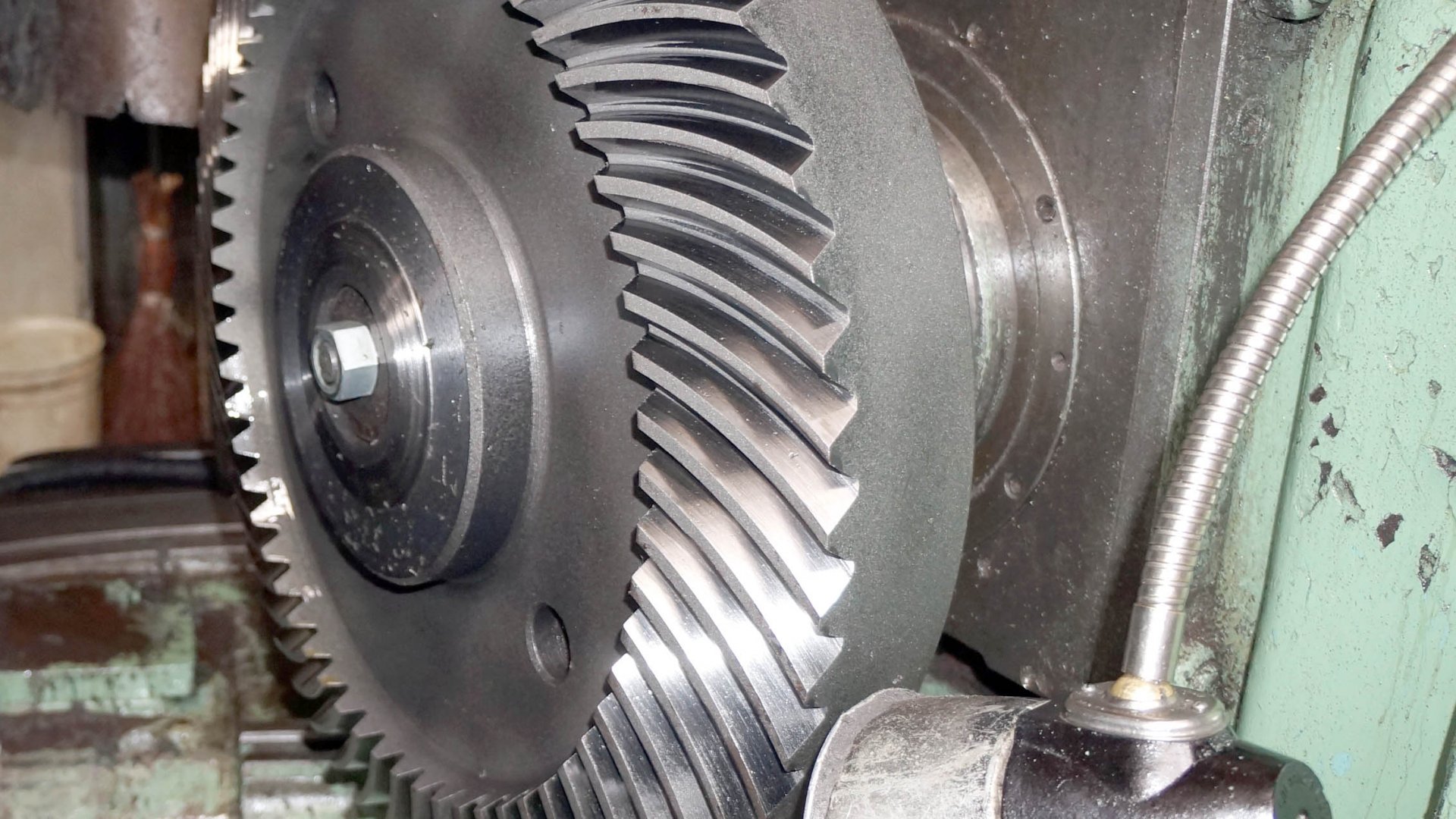

Gear grinding machine for spiral bevel gear set model 5A872
Manufacturer: STANKO

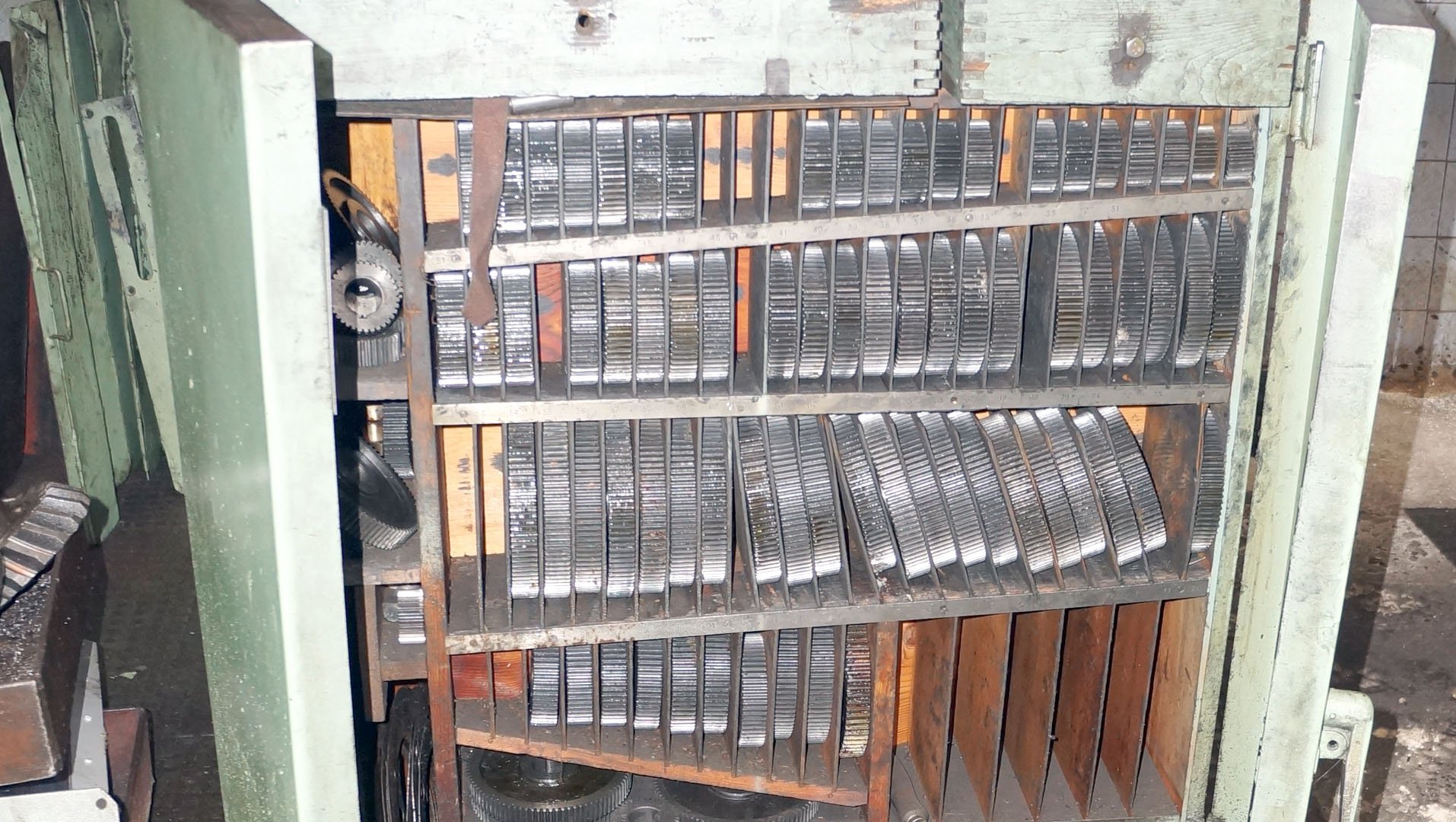

Condition: perfect, accesories, can inspect under power
- workpiece diameter, mm 800
- module, mm 16
- number of teeth 4-100
- angle of spiral, deg 0-60
- tooth depth, mm 33
- width of ring or pinion gear, mm 125
- cradle roll, deg 0-60
- diameter of grinding wheels, mm 160; 250; 315; 450
- spindle speed, RPM 955-4140
- machine dimensions (L×W×H), mm 3320x2100x2000
- machine weight, kg 12500
Specifications:
Gear grinding machine for spiral bevel gear set model 5A872
