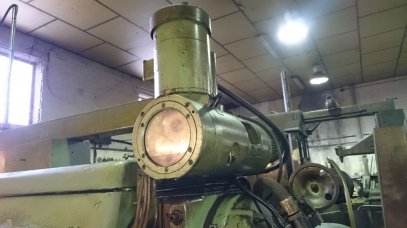

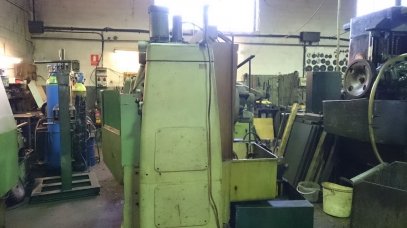

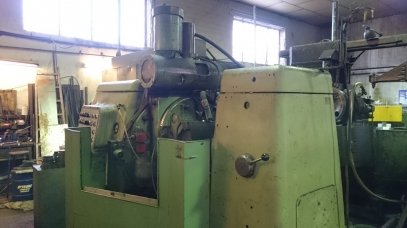

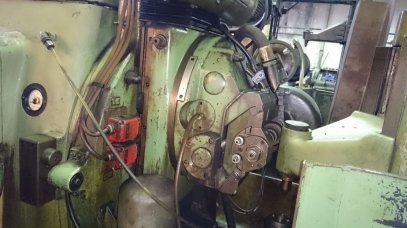

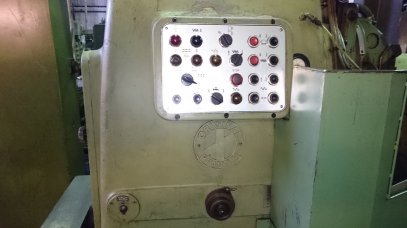

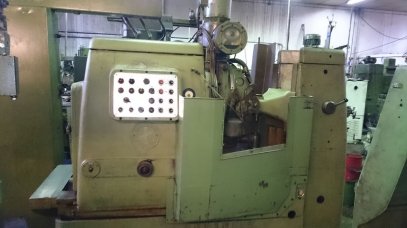

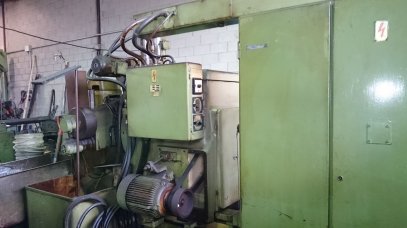

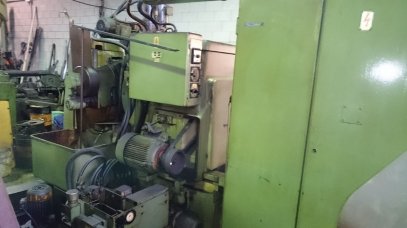

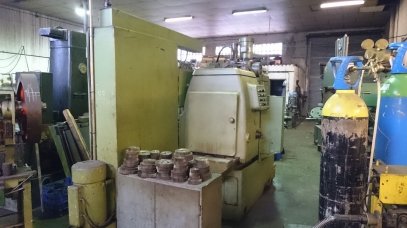

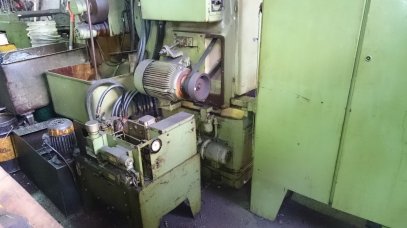

Gear hobbing machine PFAUTER RA 200 made in Germany.
Specifications:
CAPACITY
Max. wheel diameter: 203 mm
Max. helix angle of tooth: 40 degrees
Min. number of teeth to be hobbed:
-Standard (1-start index drive): 6(9)
-Special (2-start index drive): 4
Max. number of teeth to be hobbed: 48(72)
DIMENSIONS:
Center distance between work-piece and hob:
-Min.: 11 mm
-Max.: 140 mm
Diameter of work table: 220 mm
Diameter of table bore: 62 mm
Bore of table bushing: 72 mm
Diameter of hob arbors (1 included with machine): 21 mm, 24 mm, 19 mm, 11 mm
Hob spindle taper: Morse 4
Max. hob dimensions:
-Diameter: 124 mm
-Length: 176 mm
Max. hob shift-manual or automatic: 110 mm
Hob speed-adjustable from: 80-500 rpm
ELECTRIC SPECIFICATIONS
Voltage (standard): 220/380 V
Frequency (standard): 50 Hz
Rated output of main motor: 10 HP
Total power consumption of machine: 16,5 kVA
