For Sale Listings

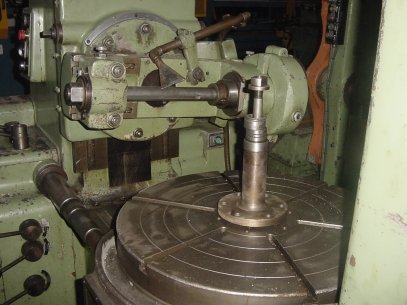

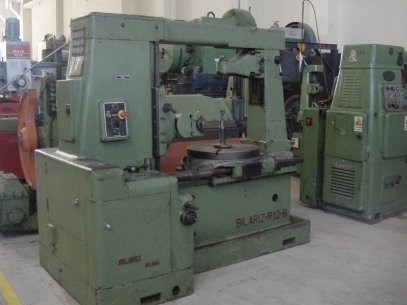

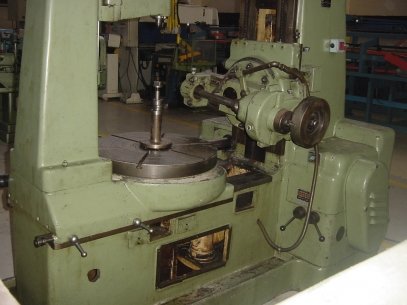

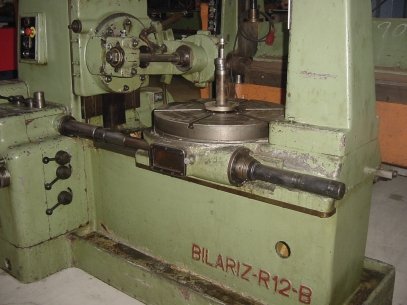

BILARIZ, R-12-B, HORIZONTAL, GEAR HOBBERS
  • Condition:Used
  • Category:GEAR HOBBERS
  • Type:HORIZONTAL
  • Manufacturer:BILARIZ
  • Model:R-12-B
  • YOM:-
  • Location:Spain, Barcelona
  • Price:On request
  • Stock No:-
  • Control:Manual
  • ID:AS27254
Description:
Max. permissible gear:
Without carrying lunette: 1,050 mm
With porta window: 750 mm

Minimum diameter: 10 mm
Course max. to spur gear size: 450 mm

Max. Strawberry: 170 mm
Max module. carving: 12 mm

Plate diameter: 620 mm

No. mandrino milling speeds: 9

- Low: 20.6 rpm
- High: 150 rpm

No cutting progress on both cars: 9

- Minimum: 0.32 mm
- Maximum: 3 mm

Rapid advances in both carriages

Engine 220-380V: 5.5 CV
Specifications:
-
