For Sale Listings

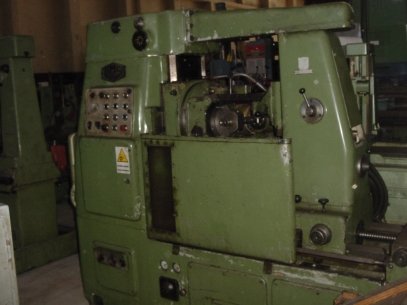

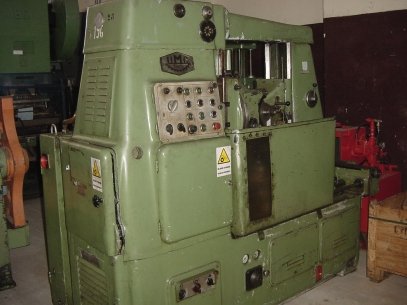

CUGIR, FD 320, HORIZONTAL, GEAR HOBBERS
  • Condition:Used
  • Category:GEAR HOBBERS
  • Type:HORIZONTAL
  • Manufacturer:CUGIR
  • Model:FD 320
  • YOM:-
  • Location:Spain, Barcelona
  • Price:On request
  • Stock No:-
  • Control:Manual
  • ID:AS27255
Description:
Max. gear wheel diameter: 320 mm

Max. module: 6 mm

Min. no. of teeth: 8

Axial movement of the hob arbor: 280 mm

Tangential movement of the hob arbor: 100 mm

Speeds of the hob: 60-75-95-118-150-190-230-300 rot/min.

Feeds:

- radial (hydraulic): 0,8 - 13 mm/min

- axial: 1 - 22 mm/min.

- tangential: 0,25 - 22,5 mm/min.

Main motor power: 5,5 kW
Specifications:
-
