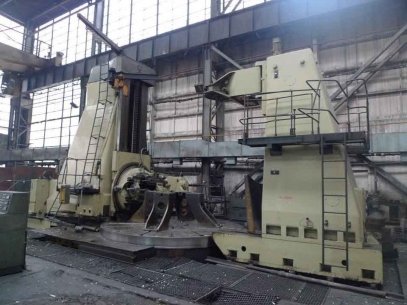

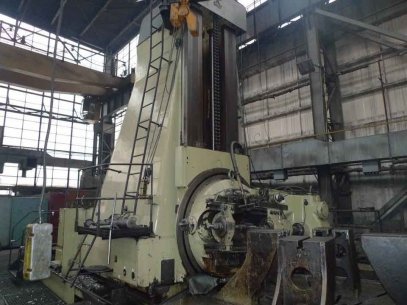

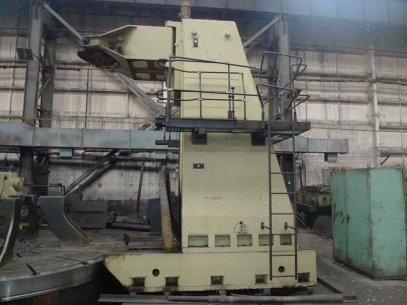

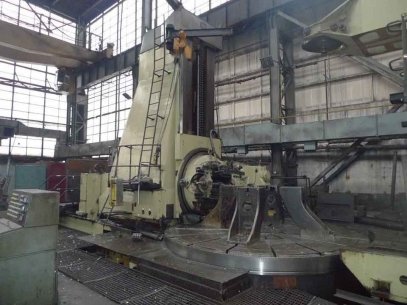

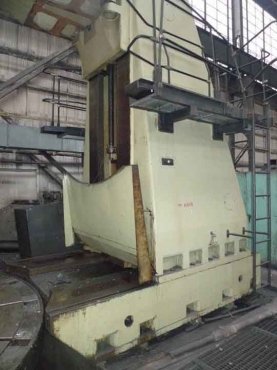

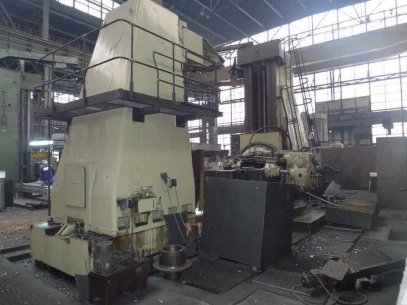

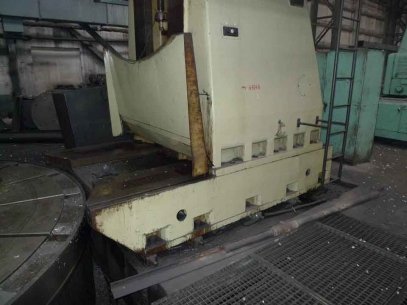

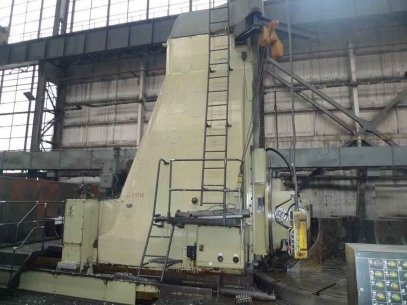

Gear hobbing machine MODUL ZFWZ 50 made in Germany. Machine is under power, in excellent condition, very less used.

Max gear diameter: 5000 mm
Max modul: 50

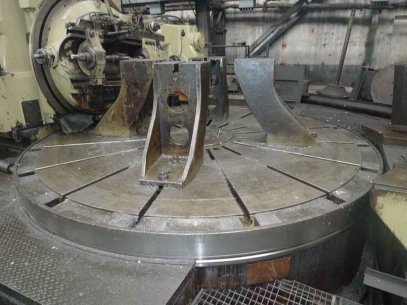

Table diameter: 4000 mm
Table center hole:
-Diameter: 800 mm
-Depth: 1500 mm
Max work-piece weight: 60 ton
Spindle taper: 100 metric
Electric power requirement: 35 kW
Machine weight with accessories: 140 ton

Five heads available:

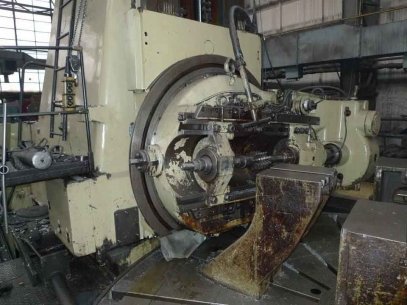

1. Universal cutting head
Max diameter: 5000 mm
Max gear width: 1500 mm
Max modul: 40

Inner gear disc cutting head to universal gear cutting head:
Gear diameter:
-Min: 2000 mm
-Max: 4000 mm
Max gear width: 300 mm
Max modul: 24
Largest disc cutter:
-Diameter: 400 mm
-Width: 130 mm

2. Tangential cutting head
Gear diameter:
-Min: 800 mm
-Max: 5000 mm
Max modul: 40
Largest cutter diameter: 400 mm
Cutter tangential move: 850 mm

3. Finger cutting head for outer gears
Gear diameter:
-Min: 800 mm
-Max: 5000 mm
Max gear width: 1500 mm
Max modul: 50

4. Finger cutting head for inner gears
Gear diameter:
-Min: 1000 mm
-Max: 4000 mm
Max gear width: 350 mm
Max modul: 50

5. Additional plano milling head for ring millings

Other accessories:

-Change gears (very less used - see on photos)
-Table supports (8+8 pcs, all scew)
-Arbors
-Weight
-Centering devices
-Books

120 ton
