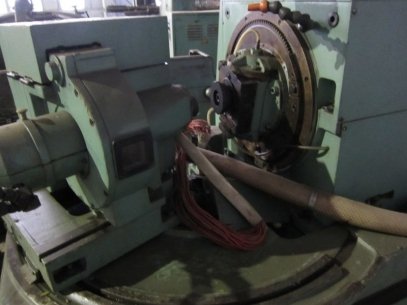

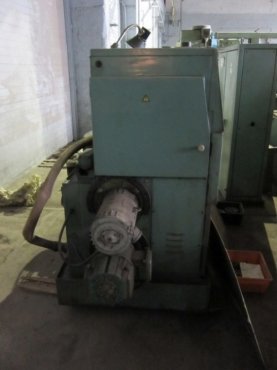

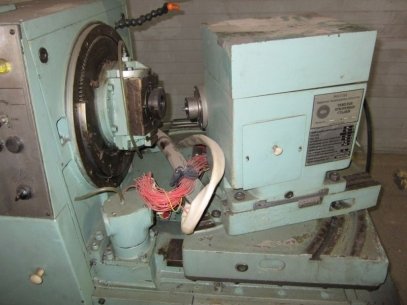

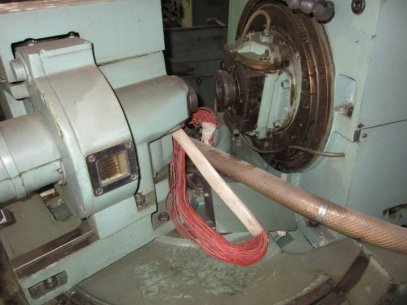

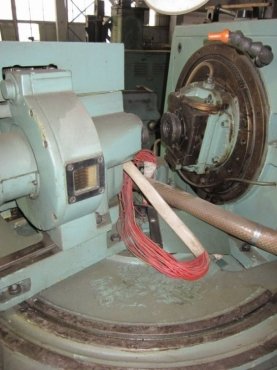

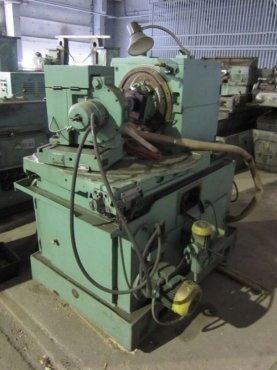

Semiautomatic gear-cutting machinery for bevel and hypoid gears with circular teeth.
Specifications:
Max working diameter: 125 mm
Max modul: 2,5
Max cone distance: 75 mm
Number of teeth of wheels: 5-200
Angle of the tooth wheel: 0-45 degrees
Angle of pitch cone wheel: 5-85 degrees
Spindle speed: 110-550 mm
Diameter of gear-cutting heads: 20-80 mm
Main motor power: 1,3 kW
