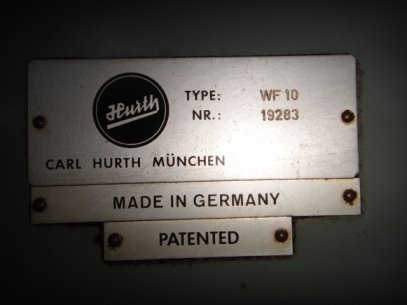

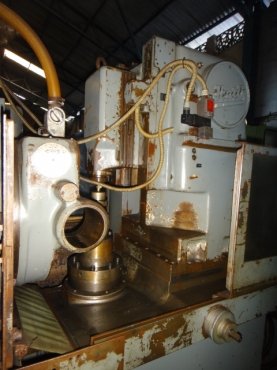

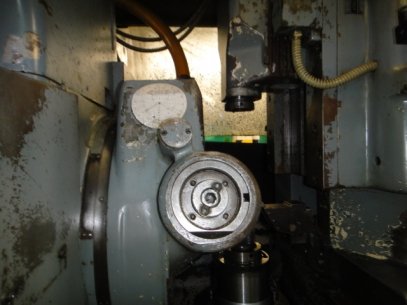

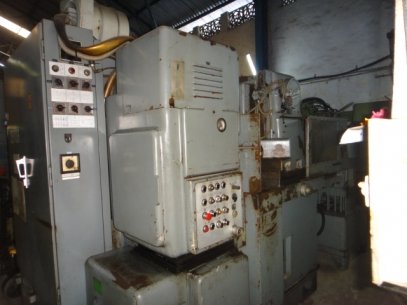

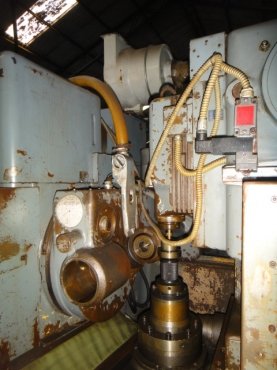

1) Used Hurth Gear Hobbing Machine Model WF 10; Sr. Nr. 19283; YOP 1973; Condition: Good to Very Good; Machine Inspection on Power. Machine equipped with the following. Maximum Diameter of Gear is 250mm
Accessories:
a) Draw Bar Clamping.
b) Coolant Equipment;

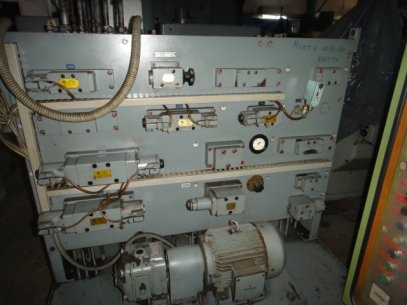

c) Separate Hydraulic; (Older WF 10 machines have in-built hydraulic which is severe hindrance to maintenance)
d) 32mm & 40mm dia. Hob Arbors.

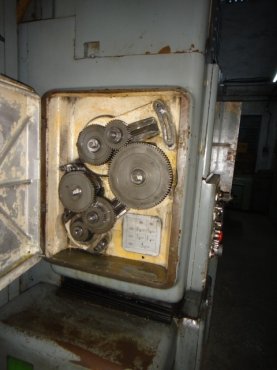

e) Complete Set of change Gears;

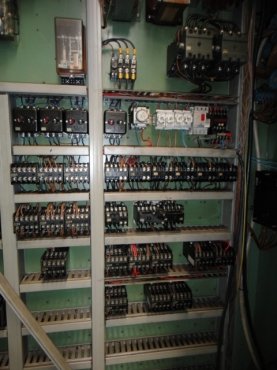

f) Machine Manual and Electrical Circuit Drawings Available.
Specifications:
Technical details / accessories
Max. Wheel Diameter 250mm
Gear Width 180mm
Max. Module 6
Max.Helical Angle 45 °
Table Diameter 225mm
Table Bore Diameter 140mm
Frässchlitten Schwenkbar Bis 45 °
Workpiece Length – Max 500mm
Hob Dia. - Max. 145mm
Cutter Length Max. 150mm
Shifting 125mm
Hob Turning Speeds 80 - 500 U/Min
Feeds – Rolls 0,5 - 8 Mm/Wu
Workpiece Slide – Travel +50mm
Voltage 220/440-480 V Motor With 110 V
Push Button Control
Total Power Requirement 15kw
Weight of the Machine 7000Kg
Dimensions Of The Machine Ca. 3,0x3,0x2,5 M
