Max diameter gears cut: 2000 mm

Max vertical moving of milling support: 900 mm

Max module of processed wheel (not less):

Modul worm mill: 20

Modul disk mill: 25

Modul manual mill: 30

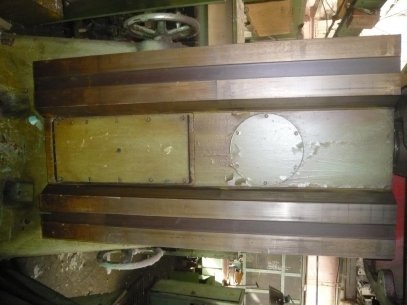

Table diameter: 1800 mm

Max work-piece weight: 20 ton

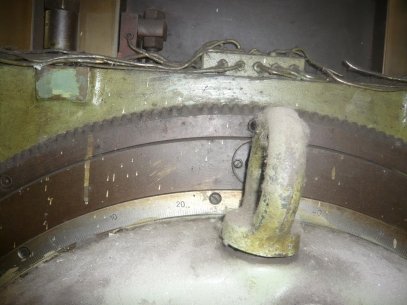

Max corner: +/- 45 degree

Diameter of installed worm mills: 300...500 mm

Amount of cuting teeths: 10...1800

Spindle speed: 8...125 rpm

Electricity: 50 Hz, 380 V

Main motor power: 20 kW

Overall dimension (LxWxH): 8600x4440x3700 mm . (Height over the floor: 3800 mm)

Machine weight: around 32040 kg
