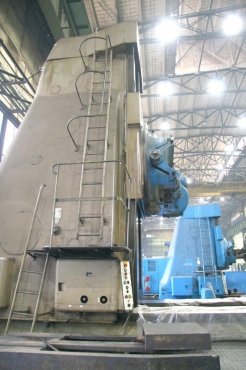

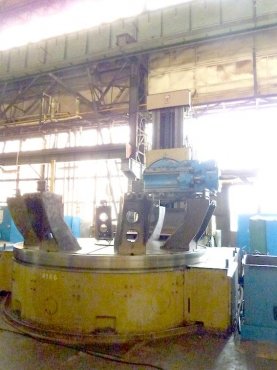

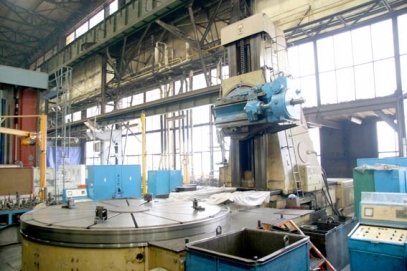

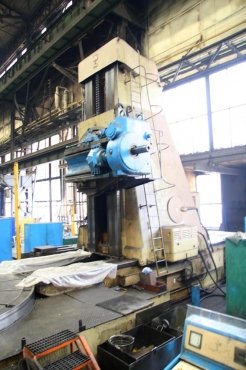

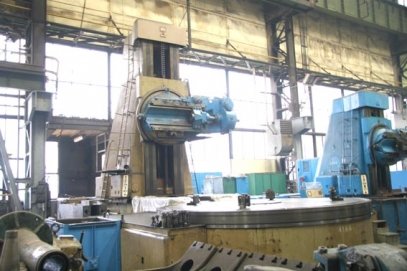

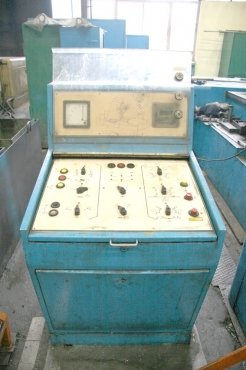

MODUL ZFWZ 8000 x 40, GEARMILLING MACHINE FOR CYLINDRICAL GEARWHEELS. New 1973.

Max gear wheel diam 8000 mm
Max modul 40
Max modul with single indexing 75
Max axial travel 2500 mm
Max tangential travel 600 mm
Max tooth angle 45°
Min no of tooth 32
Universal milling head - max milling diam 400 mm
Universal milling head - max milling length 500 mm

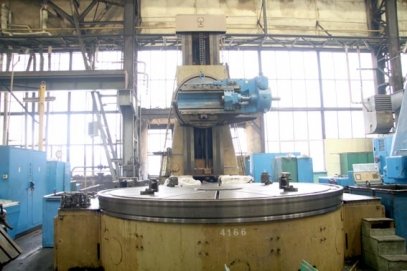

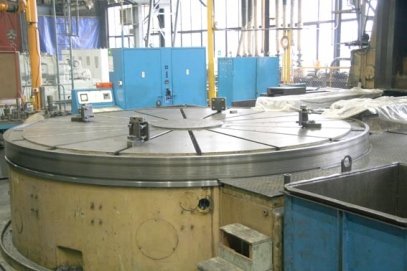

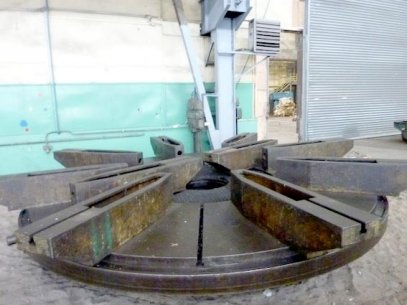

Table diam 4000 mm
Hole diam in the table 800 mm
Max table load 1000 kN
Min distance from milling head to the table 850 mm
Max distance from milling head to the table 3350 mm
Min distance from the centre of milling head to the centre of table 450 mm
Max distance from the centre of milling head to the centre of table 4500 mm
Milling speeds, steepless in two gears 8-80 rpm
Feeds, steepless Milling: -Axial 0,2-8,0 mm/WU
Feeds, steepless Milling: -Radial 0,25-8,0 mm/WU
Feeds, steepless Milling: -Tangential 0,1-4,0 mm/WU
Single indexing: -axial 6,3-560 mm/min
Single indexing: -radial 0,003-8,0 mm/min
Main motor 47 kW
Power consumption ca 150 kVA
Machine weight ca 157 000 kg
Space reqirements L x W x H 13260 x 6000 x 7200 mm
Standard equipment of the machine:

External Universal milling head, Arbors diam 60,60,100 mm
Check arbor
Prime milling
Automatic single indexing
Inverter
Standard unter programme
Steepless feeds
On and off cutting feed
Milling drive, steepless
Hydraulic table relief
Hydraulic workpiece clamping stan

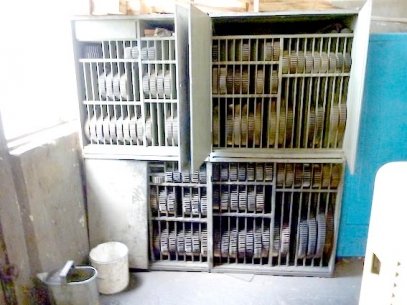

1 set of change gears
Coolant device
Accessories and Special Equipment:

Additional table 5000 mm for gear up to 8000 mm
Set of the workpiece support
16 pcs supports, Height 925 mm for up to 5000 mm
16 pcs supports, Height 525 mm
16 pcs supports, Height 400 mm for from 5000 - 6500 mm
Chip conveyor
