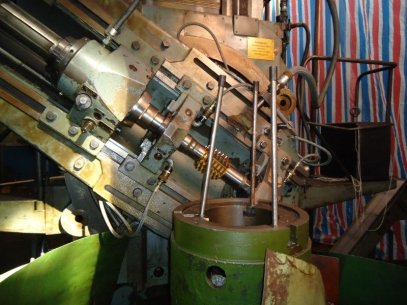

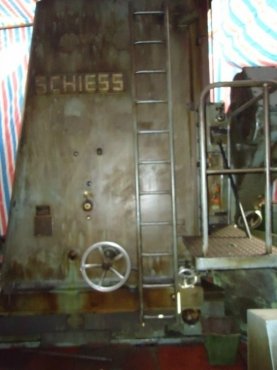

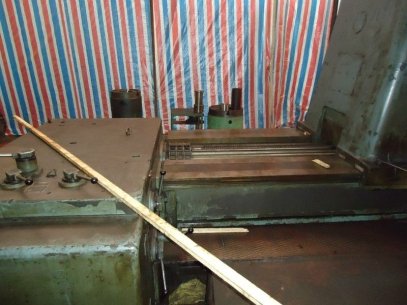

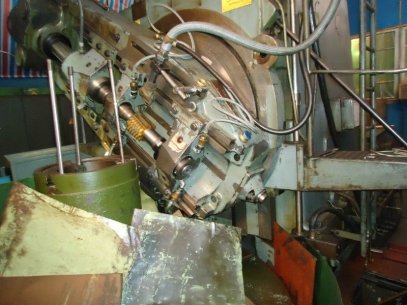

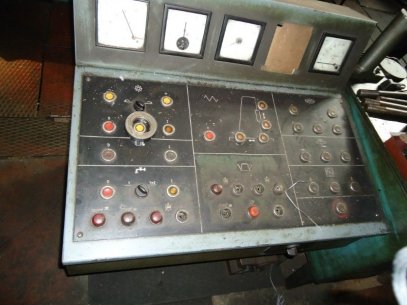

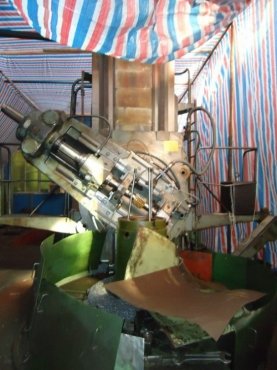

Vertical gear hobber SCHIESS RF10S. Made in: Germany.
Specifications:
Work-piece diameter:
-Min: 50 mm
-Max: 3000 mm
Module: 12
Max module: 30
Max work-piece weight: 25 ton
Distance between hob and table axes:
-Min: 100 mm
-Max: 1600 mm

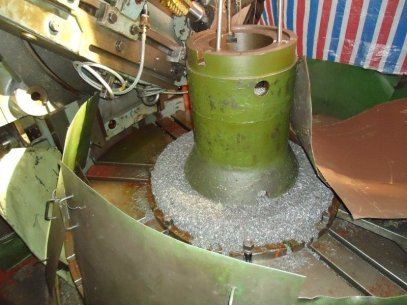

External diameter of faceplate: 2200 mm
Max hob diameter: 340 mm
Spindle speed range: 9-100 rpm
Spindle feeds: 0.08-4 mm/rev
Column feeds: 0.16-8 mm/rev
Number of feeds: 18
Fast feed of hob: 170 mm/min
Fast feed of column: 400 mm/min

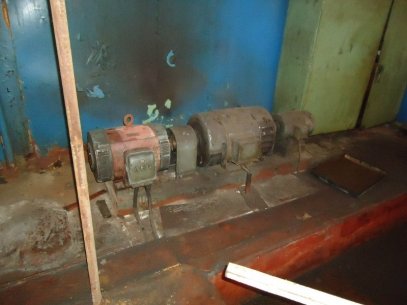

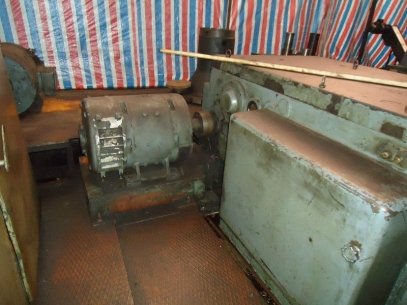

Main motor capacity: 30 kW
