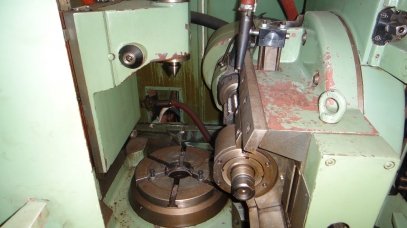

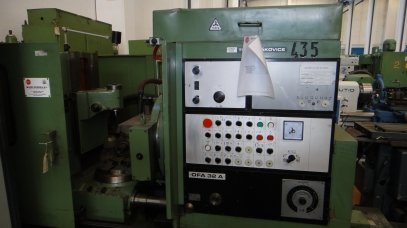

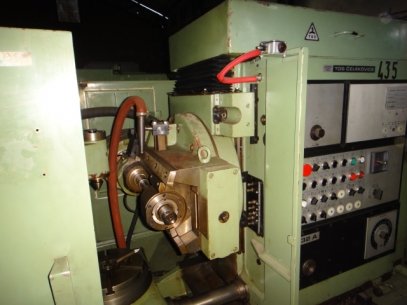

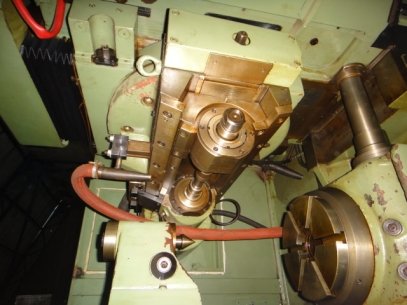

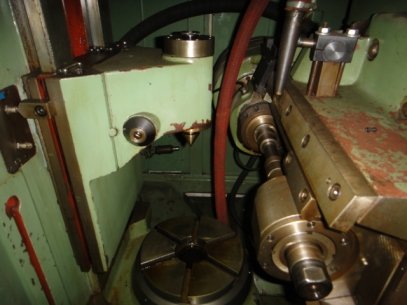

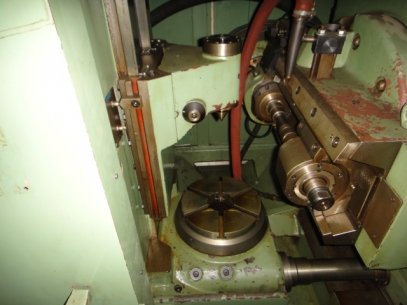

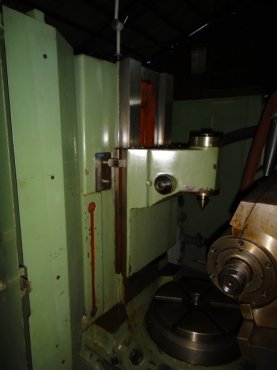

Used TOS Gear Hobbing Machine; Model: OFA 32A; Sr. Nr. 0445478; YOP: 1992; Condition: Excellent (Like new); Machine Inspection on Power for all function including Auto Cycle.

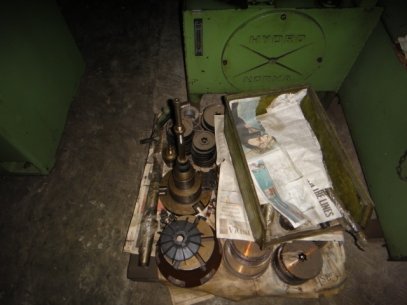

Accessories:
a) Complete Set of Change Gears.
b) Set of Timing Belt Pulley for Hob Speeds.
c) 2 Arbors.
d) Work Supports.
e) Coolant Equipment with Magnetic Chip Conveyor.
f) Manual and Electrical Circuit Drawings Available.
Specifications:
Specifications
Gear Hobbing Machine TOS OFA 32 A; Sr. Nr. 0445478
Manufacturer: TOS
YOM: 1992
Max. Gear diameter: 320 mm
Max. Module To Be Hobbed: 7mm
Max.helix angle of teeth: 45°
Hob Head Travel: 250mm
Distance Hob Axis To Table Axis: 40mm - 300mm
Max. Diameter Of Hob: 150mm
Max. Length Of Hob: 200mm
Hob Speeds In Steps: (17) 71-450 RPM
Diameter Of Work Table: 300mm
Axial Feeds: 1-220mm/min
Radial Feeds: 0.5-25mm/min
Tangetial Feeds: 0.26-50mm/min
Approx Dimensions 2.5M L-R x 2.4M F-B
Approx Height 1.8M
Approx Weight 6,200 kg
