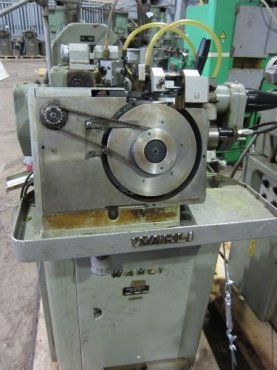

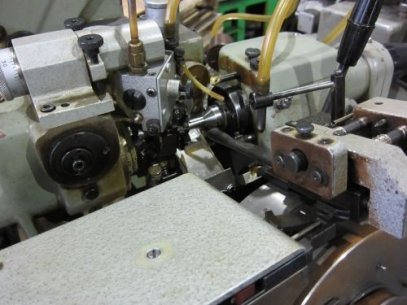

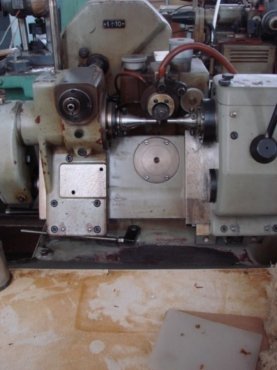

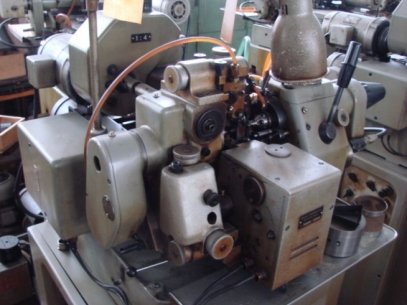

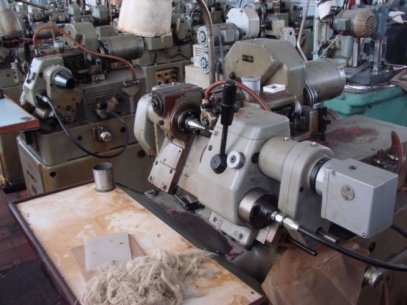

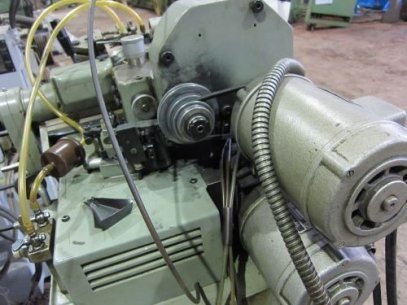

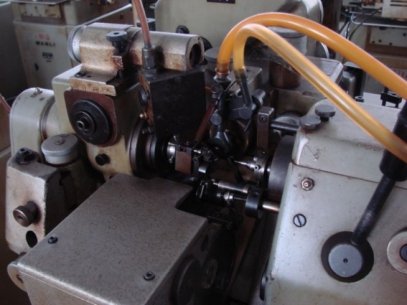

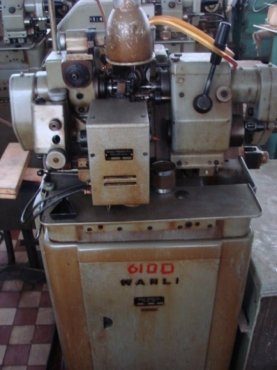

Gear hobber WAHLI Type 90. Country of Origin: Switzerland.
Specifications:
Distance between centres: 80 mm
Max length of milling: 50 mm
Max diameter of workpiece: 40 mm
Modul of gear wheel: 0,05-1
Milling teeth number: 6-200
Pinions: 64 pcs
Speed of longitudinal feed: 0-2 m/min
Speed of forward stroke, longitudinal: 3 m/min
Number of mill revolution: 660, 1450, 1850, 2500, 1350, 3000, 3800, 5300/min
Max axial mill moving: 10 mm
Max depth infeed milling: 2,5 mm
Max distance between milling cutter axis and workpiece spindle: 30 mm
Max diameter of milling cutter: 32 mm
Diameter of mill spindle: 35 mm

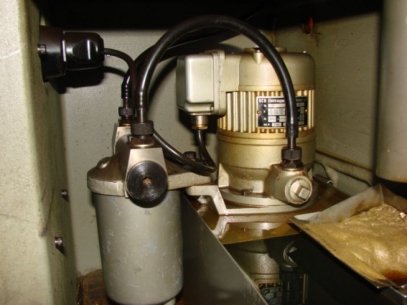

Oil capacity of cooler: 10 l
