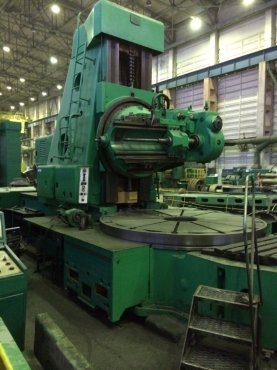

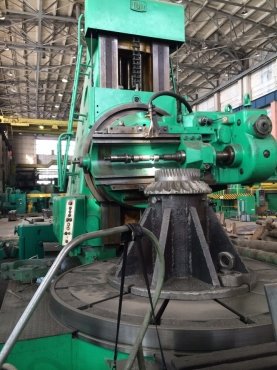

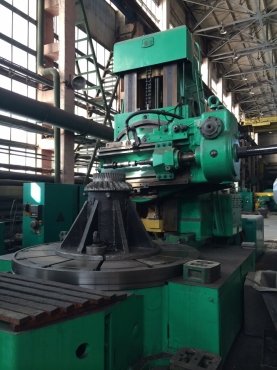

WMW MODUL, ZFWZ 3150 x 30, VERTICAL, GEAR HOBBERS
  • Condition:Used
  • Category:GEAR HOBBERS
  • Type:VERTICAL
  • Manufacturer:WMW MODUL
  • Model:ZFWZ 3150 x 30
  • YOM:1978
  • Location:Russian Federation, Chelyabinsk
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS23567
Description:
Gear hobber VEB Modul Karl - Marx - Stadt ZFWZ 3150x30/1
Specifications:
Max. diameter without the holder: 3150 mm
Max. diameter with the holder: 1600 mm
Min. diameter: 500 mm
Min. width of a tooth: 1000 mm module 30
Max. corner of an inclination of a tooth: 45 degree
Max. rearranging of a tangential pusher: 500 mm

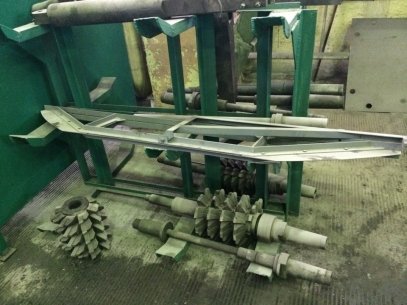

MILL
Max. diameter: 350 mm
Max. length: 440 mm

TIGHTENING A TABLE
Diameter: 2400 mm
Aperture: 500 mm
Depth of an aperture: 1100 mm
The greatest loading: 30 ton
Vertical distance between the middle: 700-1900 mm

SPEEDS
Hob turning speeds: 12,5 - 71 U/min
Feeds – axial: 0-16 mm/U
Feeds - radial: 0-7, 1 mm/U
Feeds - tangential: 0-8,0 mm/U

MILLS AND A SURFACE OF A TABLE
Horizontal distance between the middle: 300-1800 mm

SET
Control system: 6000 kg
Table: 10000 kg
Bed: 8000 kg
Bottom part of bed: 9000 kg
The main rack with ladder: 15000 kg
The back rack: 10000 kg
Pusher of rack: 6000 kg

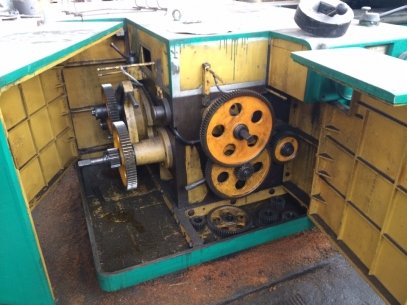

Box with change gears: 1300 kg
Additional details: 4000 kg
Box with equipment for installation of preparation for the machine: 1500 kg
Tanks: 2000 kg
Electricity box: 900 kg
Hidrostation: 500 kg

Electrical specifications: 380 V, 220V, 50 Hz, 3 MP
Main motor: 70 kW

Price: on demand.
Dealer name:
TechInvest Russian Federation, Chelyabinsk
