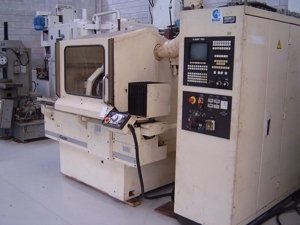

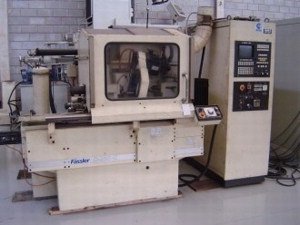

FäSSLER, D-250-C (CNC), GEAR HONERS, GEAR HONERS
  • Condition:Used
  • Category:GEAR HONERS
  • Type:GEAR HONERS
  • Manufacturer:FäSSLER
  • Model:D-250-C (CNC)
  • YOM:1991
  • Location:Brazil, Carapicuiba
  • Price:-
  • Stock No:-

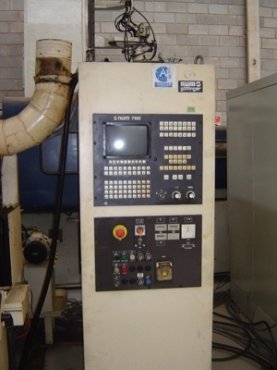

  • Control:CNC
  • ID:AS15025
Description:
- Workpiece diameter 250 mm

- Centre distance 500 mm
- Honing length max. 500 mm
- Workpiece diameter - min. 10 mm
- Table movement per handwheel rotation 2,5 / 20 mm

- Table speeds 0,02 - 6 m/min

- Cross slide - travel 270 mm

- Movement of crosslide per handwheel rotation 0,5 - 4 mm

- Rapid return speed 50 mm

- Electrics - voltage/frequency 380/50 V/Hz

- Total power requirement 3 kW

- Weight of the machine ca. 2,5 t

- Dimensions of the machine ca. 2,8x2x1,8 m
Specifications:
Rebuilding in 2008
