For Sale Listings
STAR, 4HS, CUTTER SHARPENERS, GEAR MACHINERY
  • Condition:Used
  • Category:GEAR MACHINERY
  • Type:CUTTER SHARPENERS
  • Manufacturer:STAR
  • Model:4HS
  • YOM:-
  • Location:United States, Indian Trail
  • Price:-
  • Stock No:-
  • Control:-
  • ID:AS16251
Description:

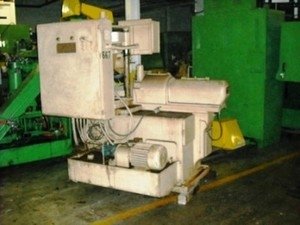

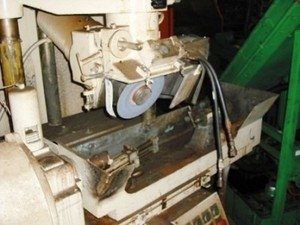

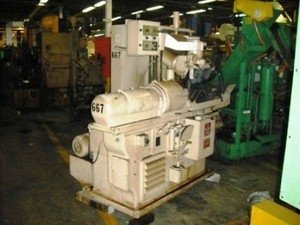

Star Hob Sharpener, Model 4HS, S/N 68-002, #1606
Specifications:
#1606 Star Hob Sharpener

Sn:
Model: 4HS
Mfg:

SPECIFICATIONS:
Maximum Rated Work Diameter (Hobs or Cutters): 10"
Maximum Rated Work Length (Hobs or Cutters): 12"
Maximum Depth of Flute : 2"

Max. Distance, Work Spindle Face to Tailstock Center: 30.75"
Distance, Spindle Center to Platen: 6.5"
Maximum Length of Table Travel: 18"
Max. Table Strokes: 12 SPM (Strokes/min) - 12"

Taper Hole in Work Spindle Nose: #11 Brown & Sharpe
Minimum Lead of Helix: 26.35"
Maximum Angle of Sine Bar Setting: 25 Degrees RH or LH
Maximum Angle of Wheel Setting: 40 Degrees Right or Left
Maximum Vertical Wheel Adjustment: 5"
Maximum Rake Adjustment: 1" (Positive or Negative)

Max. Speed of Grinding Wheel Spindle: 1800 RPM
Max. Dimensions of Grinding Wheel: 10" Dia. x 1" x 1.25"

Machine Overall Dimensions (Approx.): 90"L x 41"W x 86"H
Machine Net Weight (Approx.): 4,400 lbs

ELECTRICAL SPECIFICATIONS :
Machine Electrics: 220/480 volts / 3 phases / 60 cycles
Control Circuit Voltage: 220 volts


EQUIPPED WITH:

Machine Condition: Excellent
Machine Location:
Dimensions:
90" x 41" x 86"H
Weight:
4400 LBS
