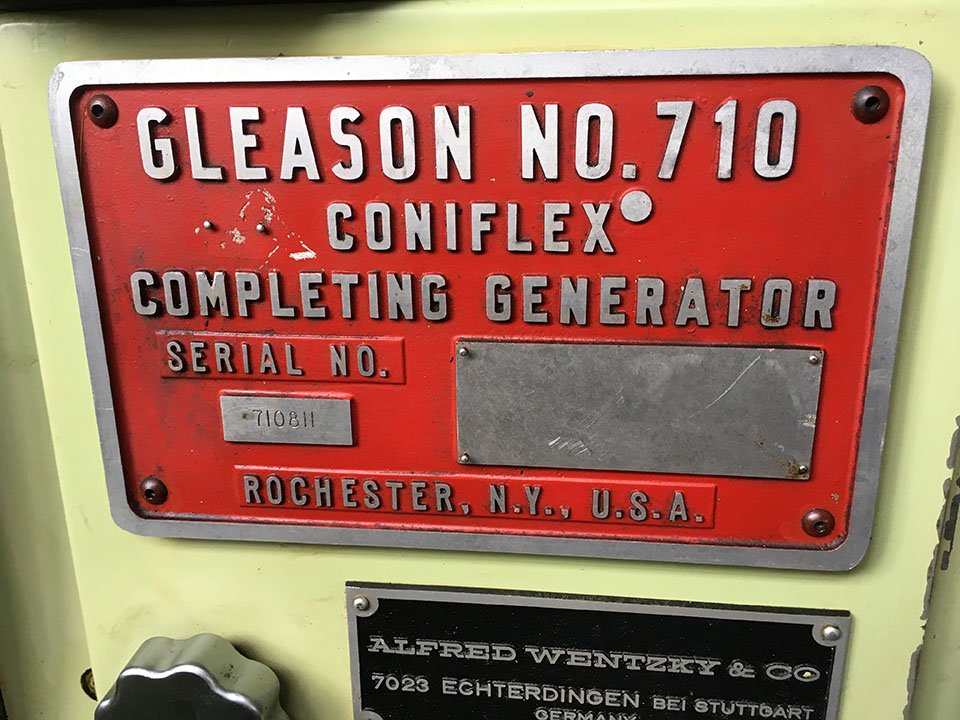

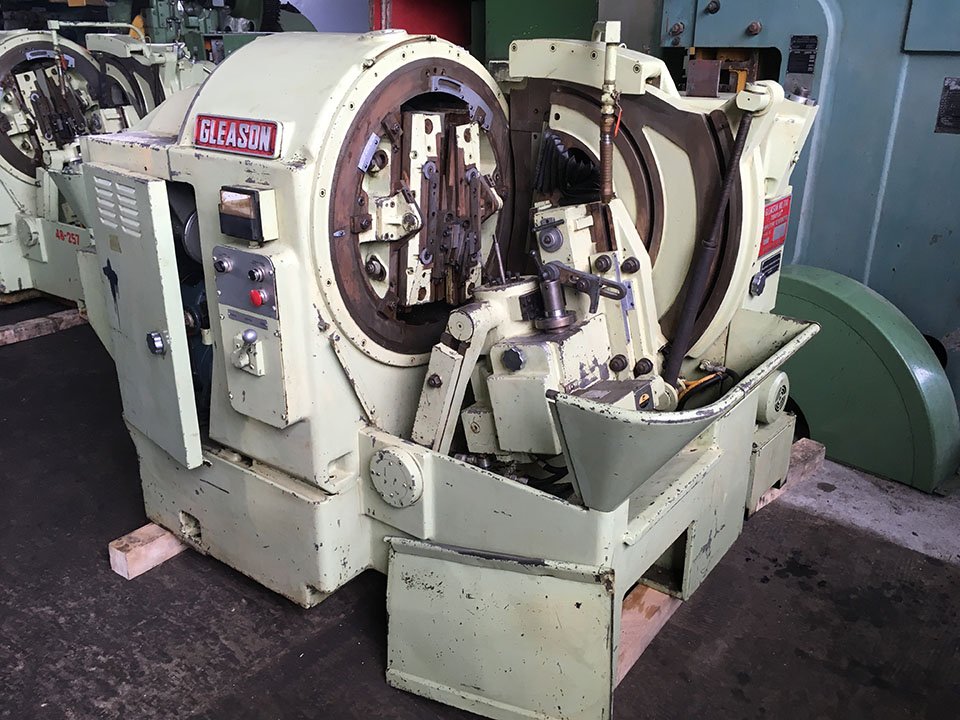

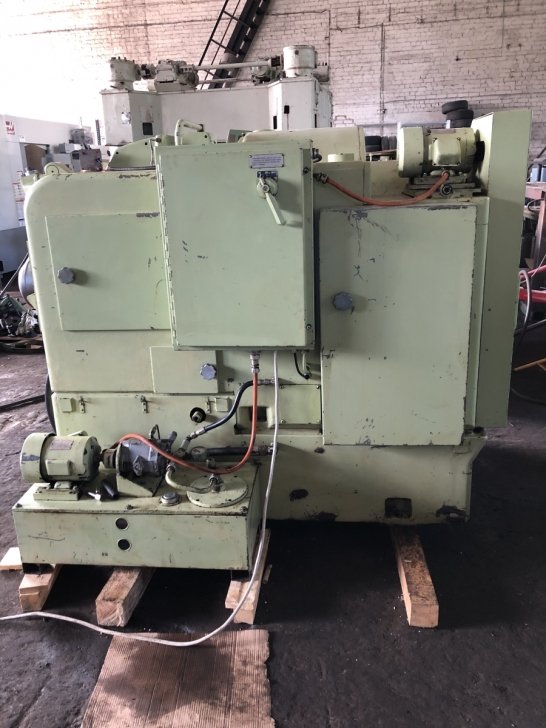

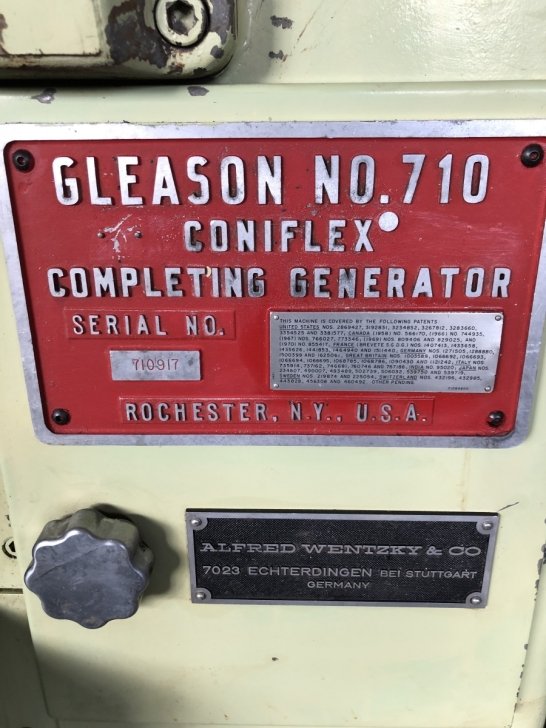

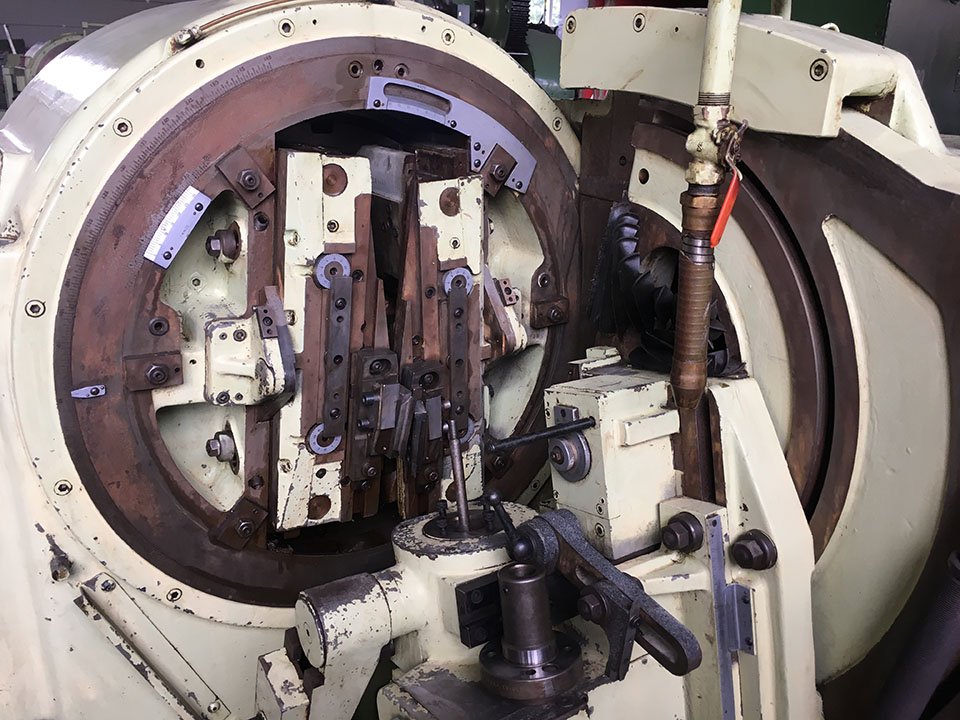

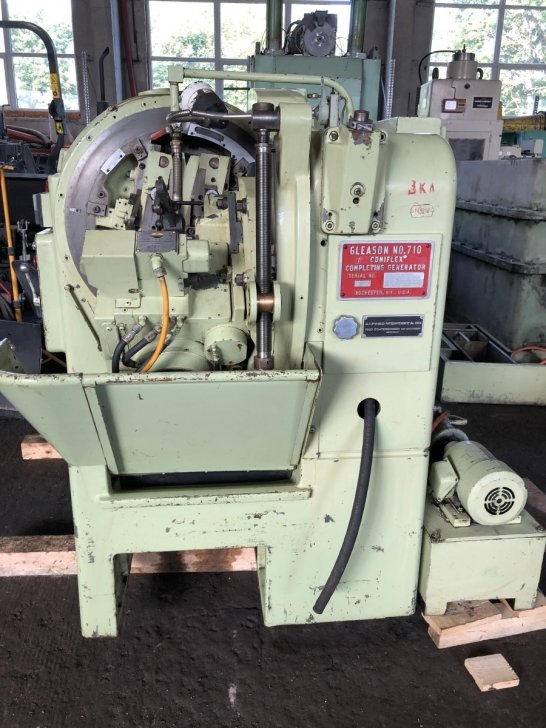

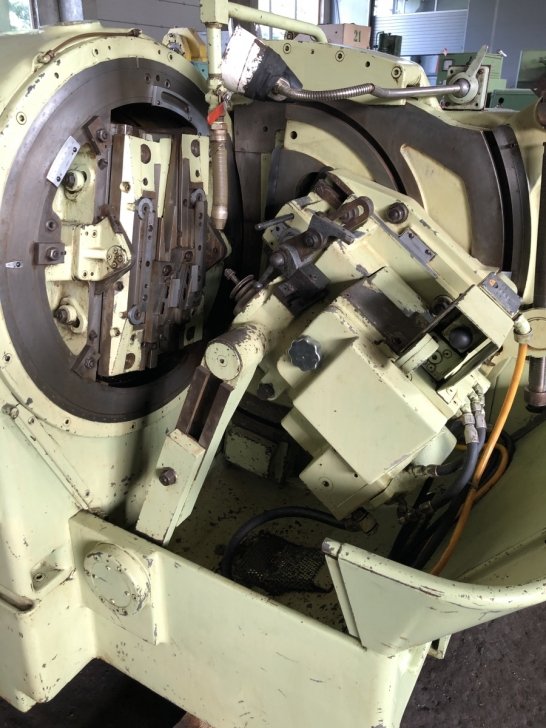

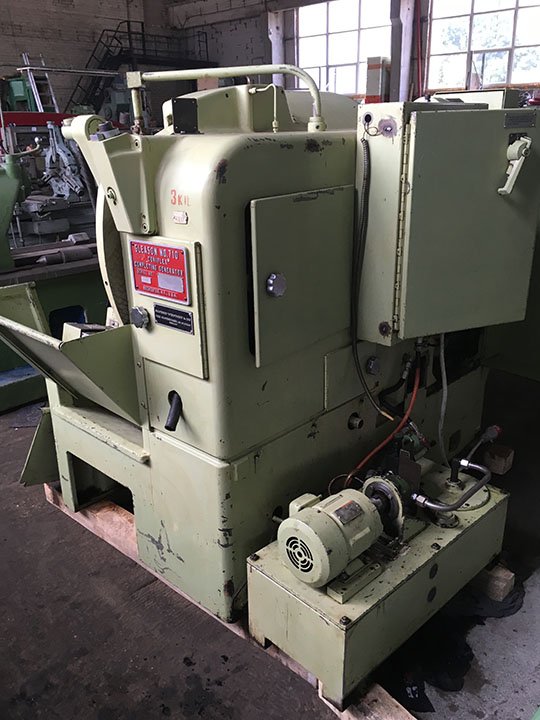

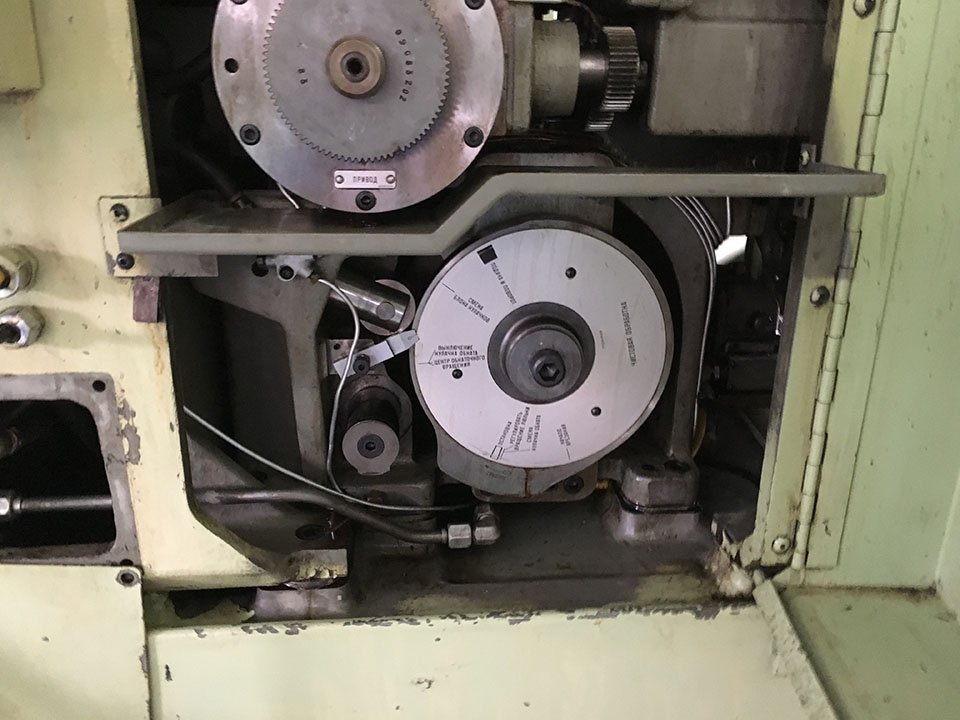

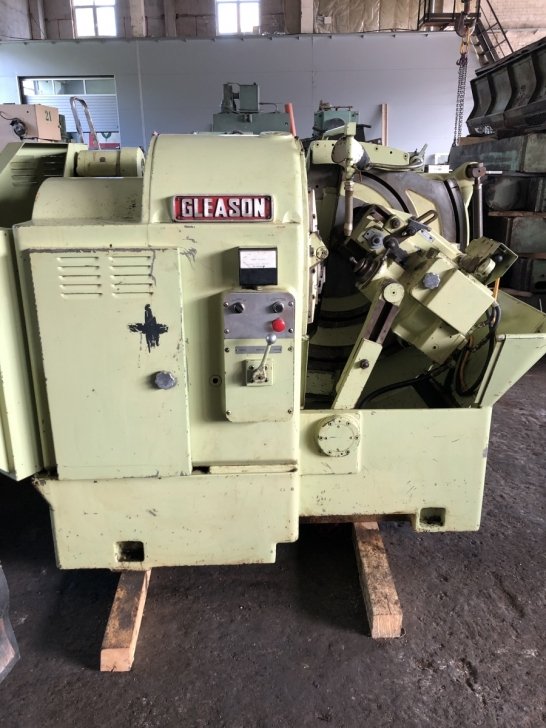

Coniflex completing gear generator GLEASON No. 710 made in USA.
Specifications:
BASIC TECHNICAL PARAMETERS
Max. length of dividing cone: 107 mm
Min. length of dividing cone: 0 mm
Max. adjusting angle: 90 degrees
Min. adjusting angle: 8 degrees
Transmissive ratio: 6:1
Max. diametral pitch: 6,35
Diapason of division: 9-120
Width of tooth: 35 mm

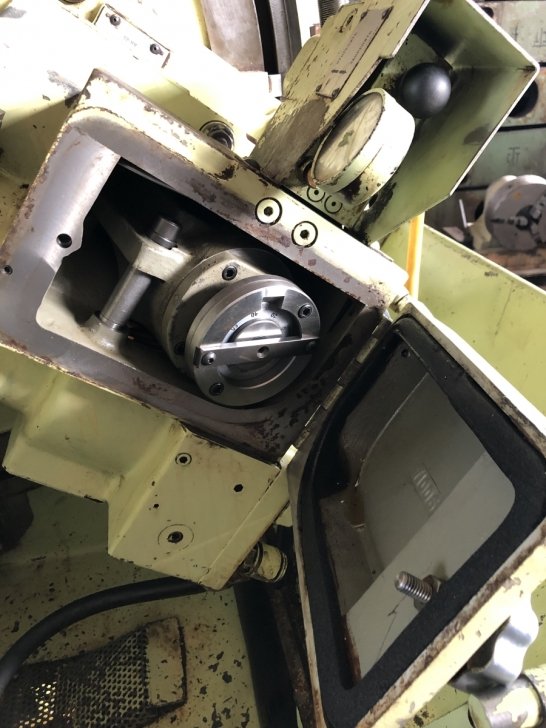

MAIN SPINDLE
Diameter of cone opening on tip: 58,34 mm
Obliquity on 304,8 mm length: 12,7 mm
Obliquity: 15,87 mm

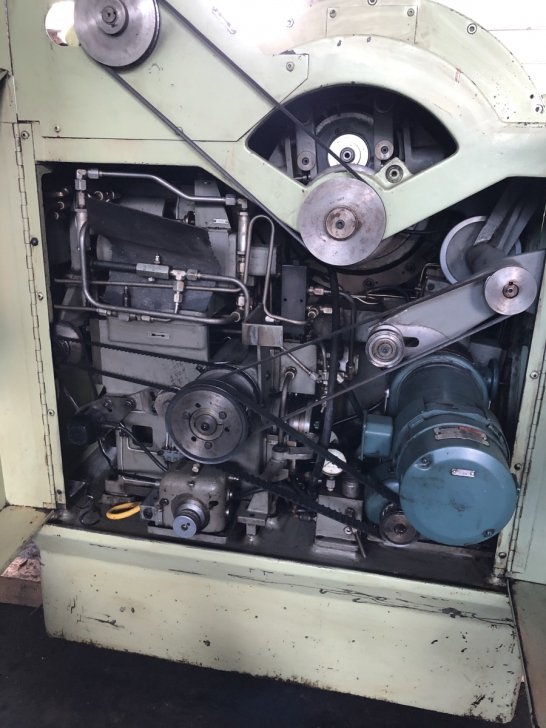

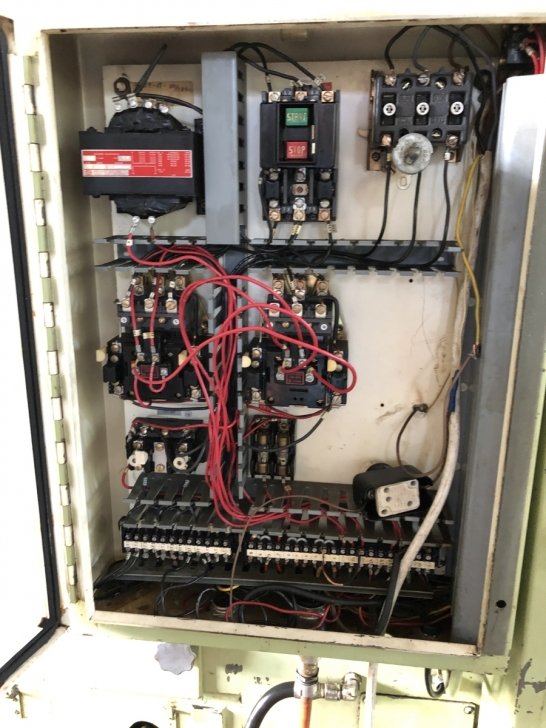

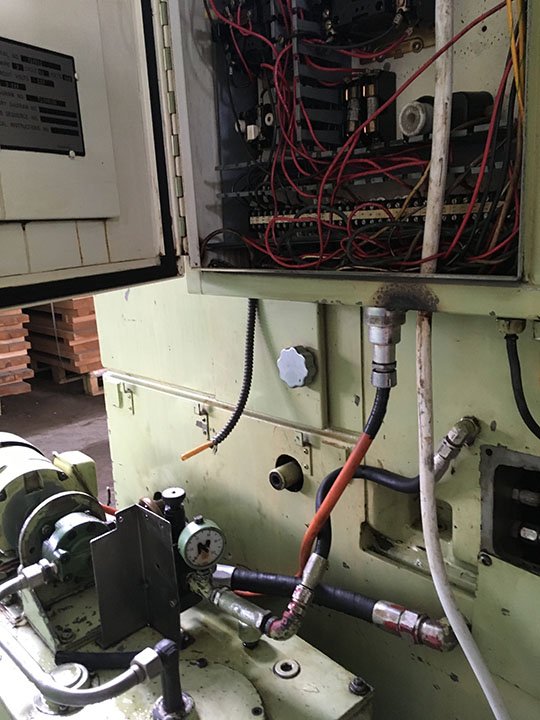

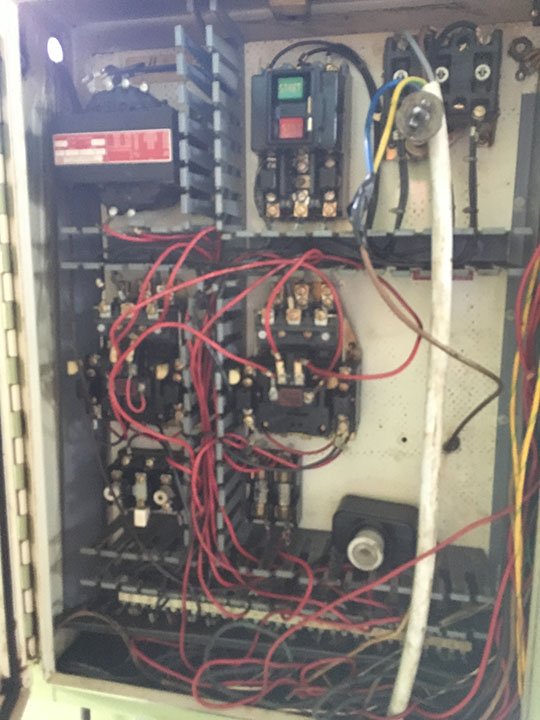

ELECTRICAL PART
Main motor: 50 Hz, 1500 r/min

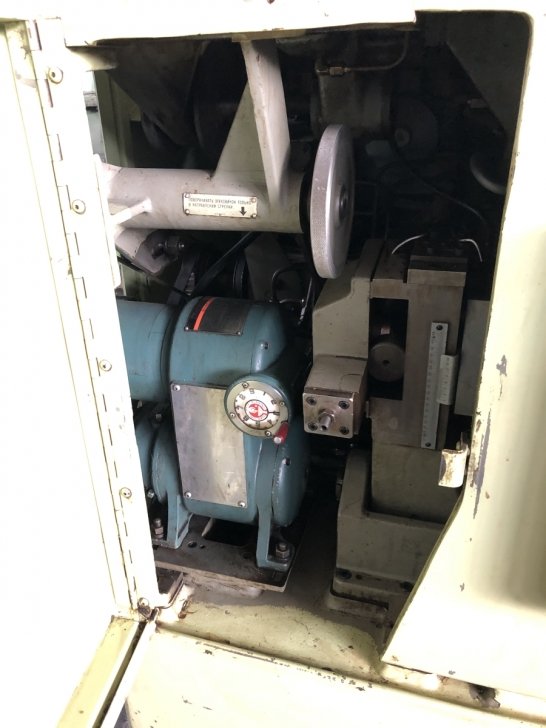

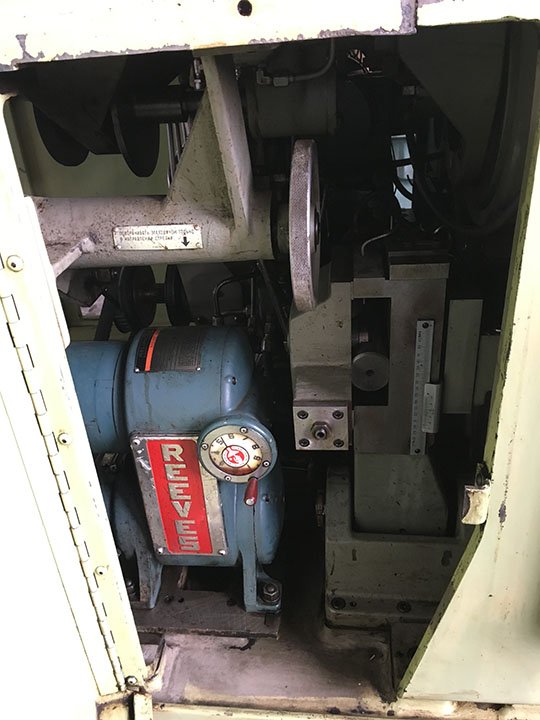

Stepless adjustable motor: 1500 r/min

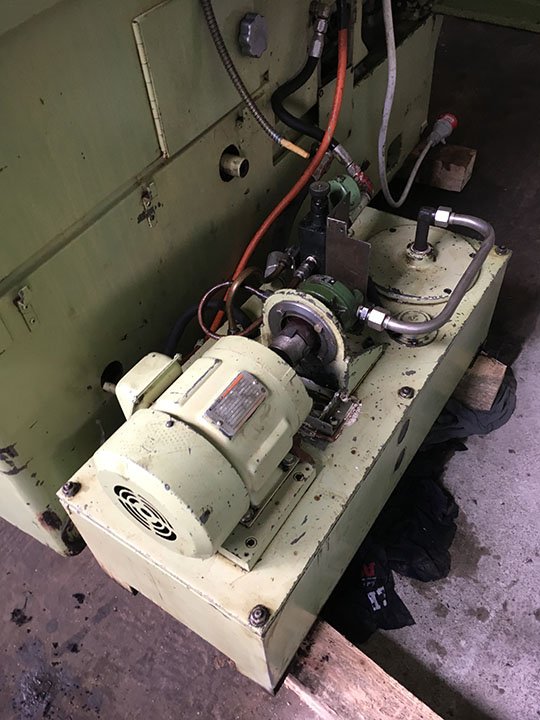

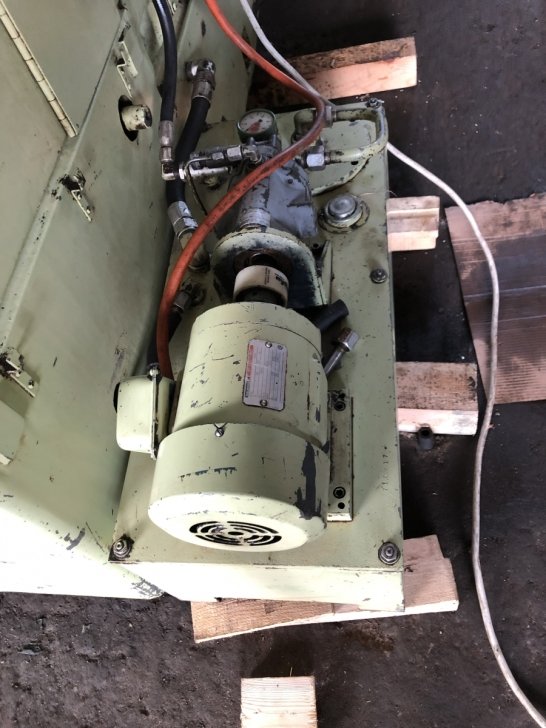

Motor of hydraulic pump: 1500 r/min

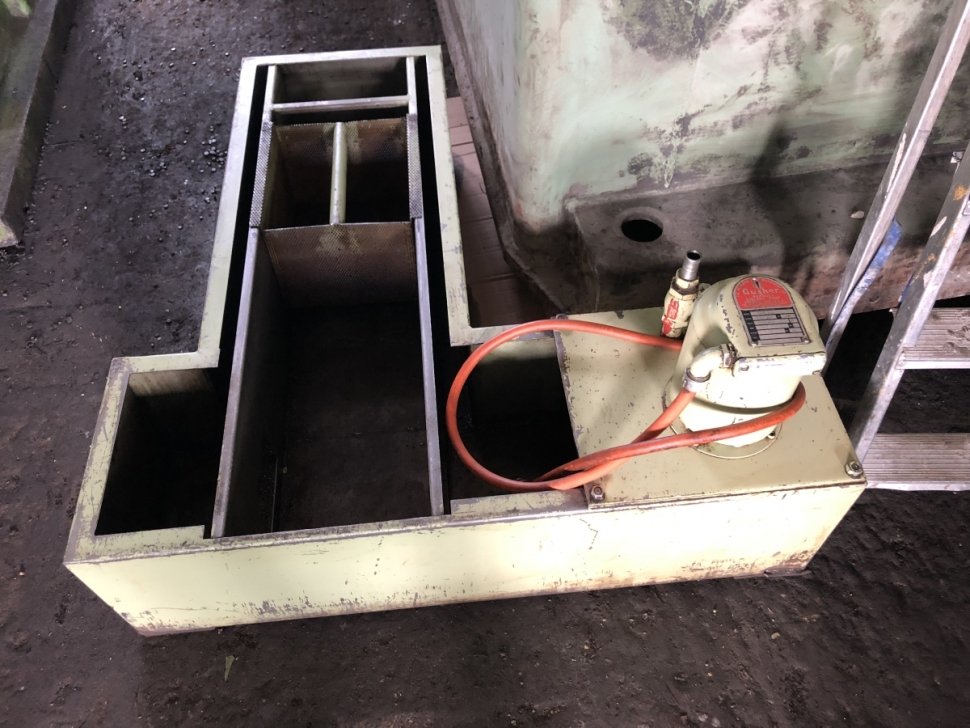

Motor of frigorific pump: 3000 r/min
DIMENSIONS
Length: 2032 mm
Width: 1524 mm
Height: 1626 mm
