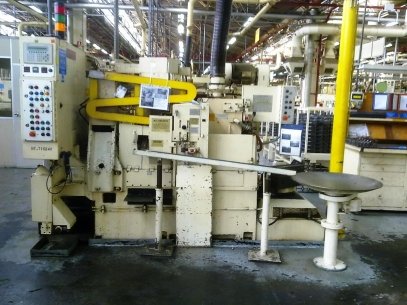

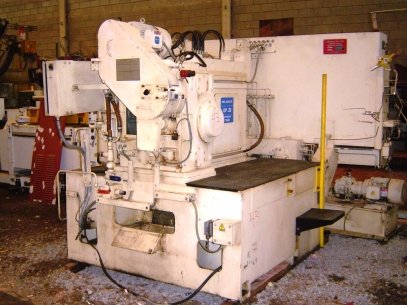

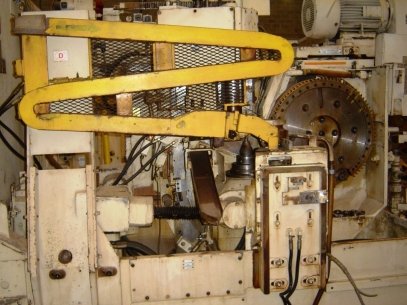

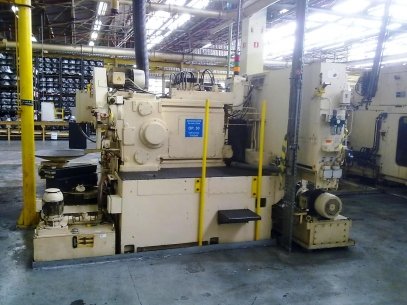

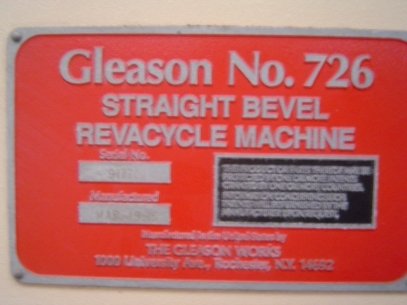

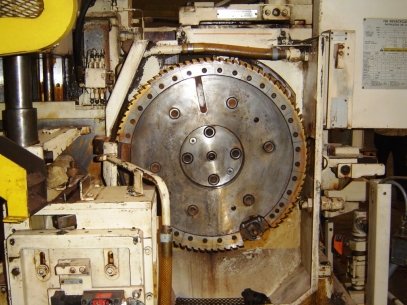

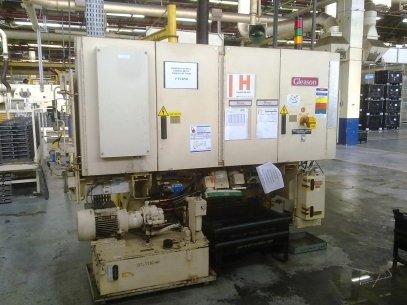

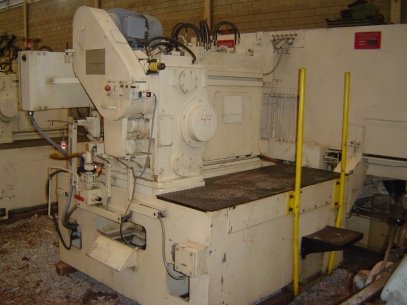

Root angle range 15-55 deg
Pitch diameter - manual 5.9"
Pitch diameter - automatic z chute 5"
Pitch diameter - automatic gear / pinion hopper 4"
Shank length - loader stripping height 4"
Shank length - gear and pinion hopper * 1.49"
(* can be extended in some cases)
Depth 21 inch separate roughing and finishing .58"
Depth 21 inch completing .42"
Face width at root - 21 inch cutters 1.1"
Index range 8-50
Feeds and Speeds cutter speeds 21 inch cutters 107-163
ft/min
32.6-49.7m/min
Work Spindle
Work Spindle Diameter taper hole large end 3.9"
Taper per foot .60"
Depth of Taper .62"8"
Diameter of Hole Through Spindle .87"
Speed of Countershaft RPM 400
Horsepower of motor, if required 7.5
Floor Space Required 10.49'x7.4
Net Weight 16,488 lbs.
