GLEASON, No. 116, GEAR GENERATORS, BEVEL, GEAR MACHINERY
  • Condition:Used
  • Category:GEAR MACHINERY
  • Type:GEAR GENERATORS, BEVEL
  • Manufacturer:GLEASON
  • Model:No. 116
  • YOM:-
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS20209
Description:

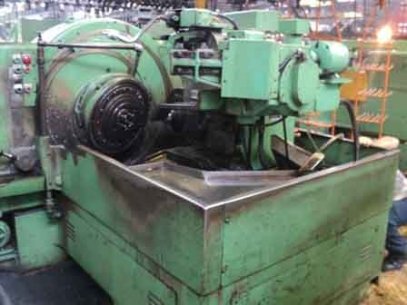

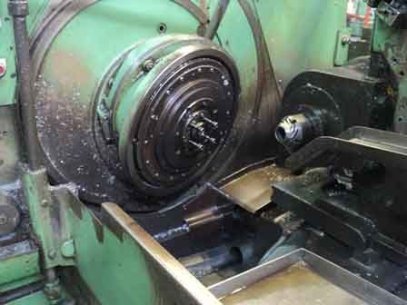

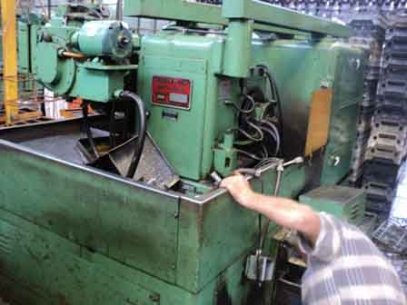

Hypoid gear finisher GLEASON No. 116 made in USA. Quantity: 6 units.
Specifications:
CAPACITY
Max cone distance (30 degree angle and 300 mm cutter): 228 m
Max extreme ratio: 10 to 1
Max gear pitch diameter (30 degree spiral angle):
-Ratio 10 to 1: 457 mm
-Ratio 2 to 1: 406 mm
-Ratio 1 to 1: 323 mm
Diametral pitch (coarsest): 12,7 mod.
Max full depth: 25,4 mm
Max face width: 69,9 mm
Number of teeth: 5 to 150

WORK SPINDLE
Diameter of taper hole at large end: 100 mm
Taper per foot: 39/1600 mm
Depth of taper: 150 mm
Diameter of spindle nose: 137,5 mm

CUTTER DIAMETER
Diameter: 125 mm; 150 mm; 187,5 mm; 225 mm; 300 mm

WORKHEAD SETTINGS:
Max offset above center: 112,5 mm
Max offset bellow center: 112,5 mm
Distance from machine center to nose of spindle:
-Max: 337,5 mm
-Min: 62,5 mm

SPEEDS AND FEEDS
Cutter speeds: 20 to 115 rpm
Feed (seconds per tooth): 9 to 80 seconds

ELECTRICAL EQUIPMENT
Voltage: 380 V, 50 Hz
Feed motor: 5,5 kW
Hydraulic motor: 3 kW
Coolant motor: 1,5 kW

MISCELLANEOUS
Floor space: 2560x1980 mm
Height: 1620 mm
Net weight: 10977 kg
Shipping weight (boxed for export): 11930 kg
Size of case: 3040x2760x1950 mm
