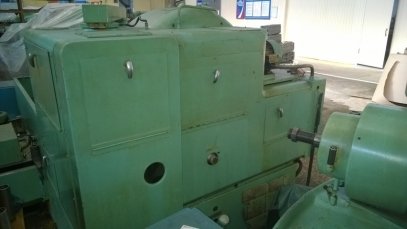

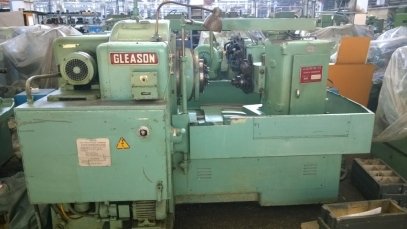

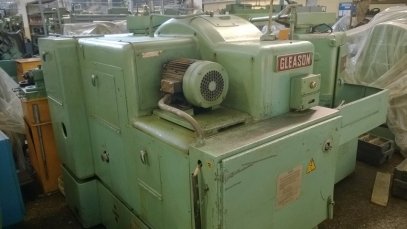

CAPACITY
Max cone distance (30 degree angle and 300 mm cutter): 228 m
Max extreme ratio: 10 to 1
Max gear pitch diameter (30 degree spiral angle):
-Ratio 10 to 1: 457 mm
-Ratio 2 to 1: 406 mm
-Ratio 1 to 1: 323 mm
Diametral pitch (coarsest): 12,7 mod.
Max full depth: 25,4 mm
Max face width: 69,9 mm
Number of teeth: 5 to 150
WORK SPINDLE
Diameter of taper hole at large end: 100 mm
Taper per foot: 39/1600 mm
Depth of taper: 150 mm
Diameter of spindle nose: 137,5 mm

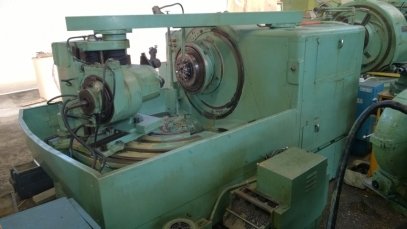

WORKHEAD SETTINGS:
Max offset above center: 112,5 mm
Max offset bellow center: 112,5 mm
Distance from machine center to nose of spindle:
-Max: 337,5 mm
-Min: 62,5 mm

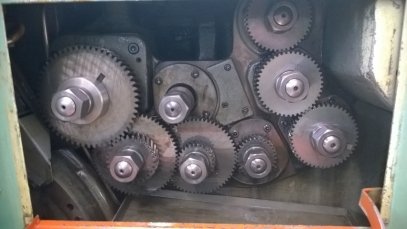

SPEEDS AND FEEDS
Cutter speeds: 17 to 115 rpm
Feed (seconds per tooth): 9 to 80 seconds
