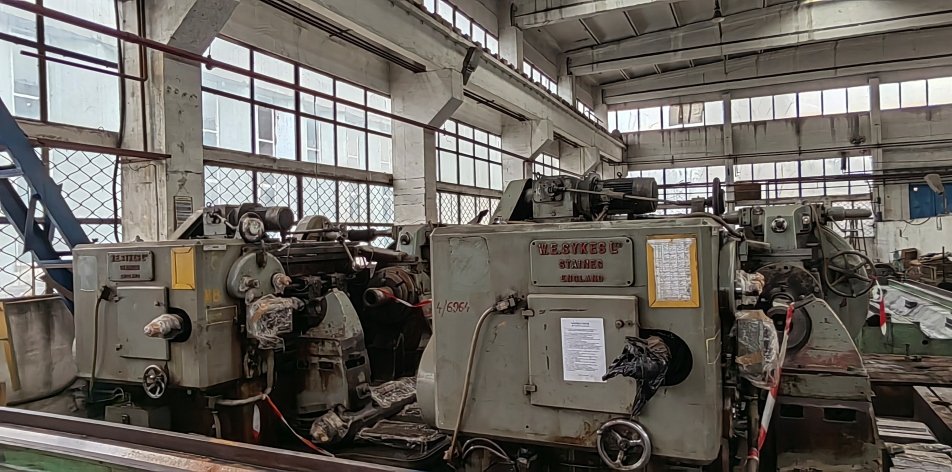

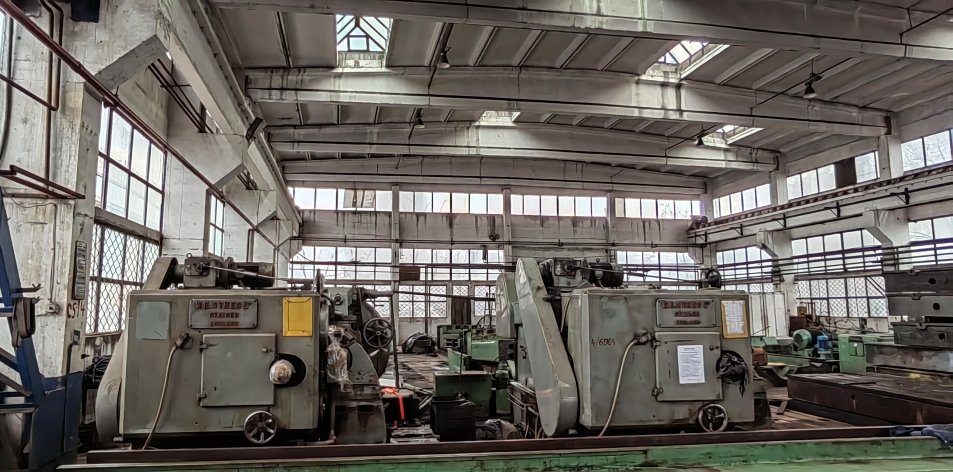

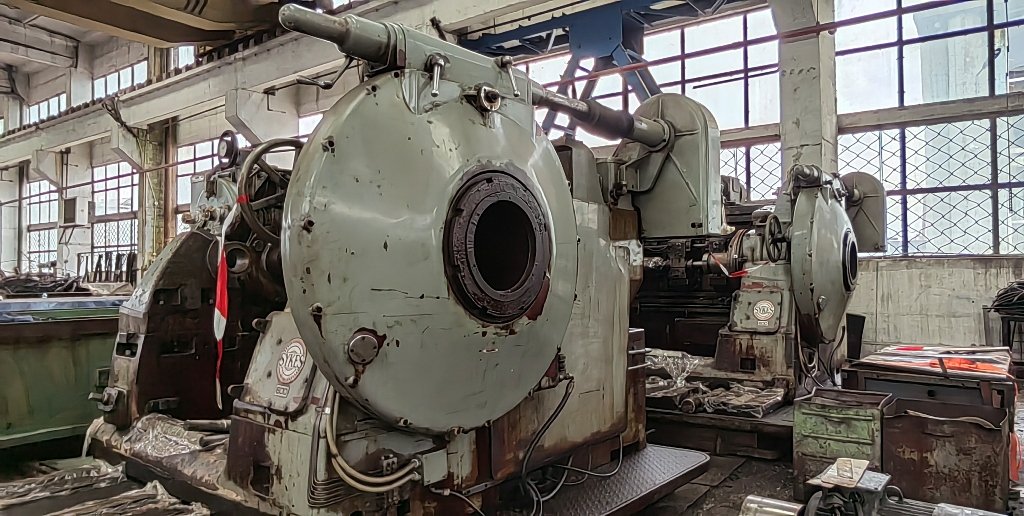

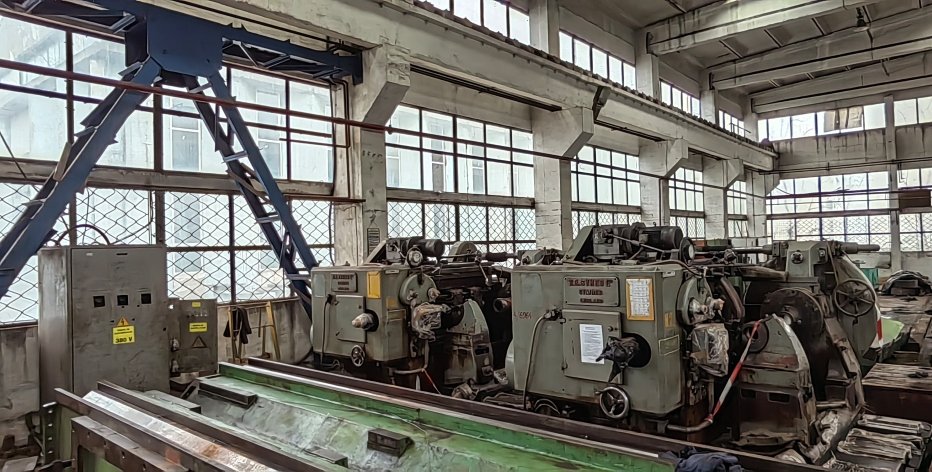

SYKES MODEL 1600 MM SIMILAR 5 E MODEL (year 1992), NO 2 units AVAILABLE

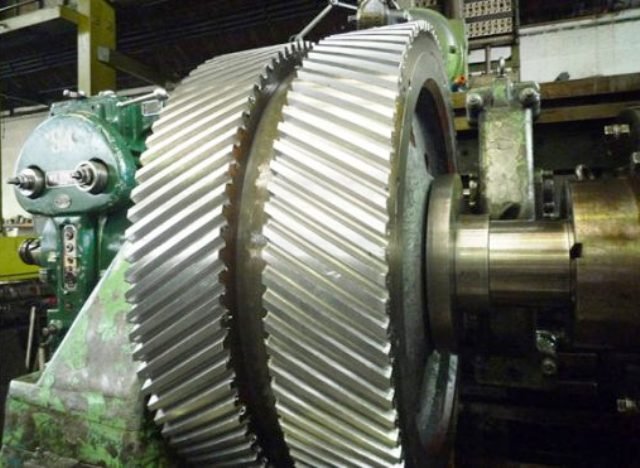

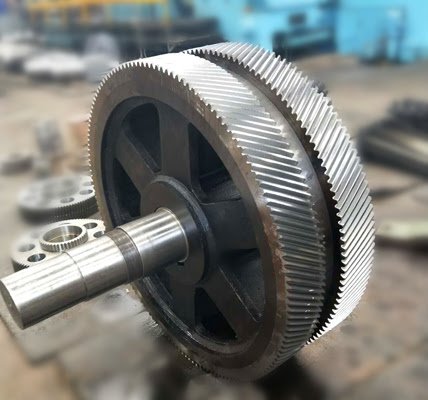

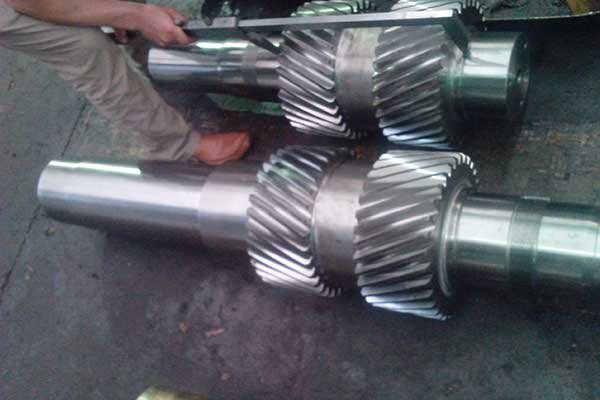

CUTTING DOUBLE HELICAL GEARS , GEAR GENERATOR HERRINGBONE GEAR GENERATOR SYKES1600 MM
SPECIAL MACHINE FOR GEAR POWER TRANSMISSIONS, OIL , PETROL & GAS INDUSTRY Year 1992 , very good working condition
Specifications:
Work spindle bore 8.75" 222 mm
Tailstock to face of work spindle:- Max 48" 1219 mm
Standard cutter diameter 6" P.C.D.
Standard cutter bore 3.5"
EXTERNAL GEARS:
Blank diameter:- Max 63" 1600 mm
Min 0 0
Face width, double helical 0 - 18" 0 - 457 mm
Face width, spur or single helical 0 - 10" 0 - 254 mm
INTERNAL GEARS:
Blank diameter:- Max 66" 1676 mm
Face width 0 - 8" 0 - 203 mm
P.C.D.:- Max 66"- (2 x rim thickness)
Pitch range:- Max 16 D.P. 1.6 Mod
Min 1.5 D.P. 17 Mod
Helix angle range 0 - 45 deg.
