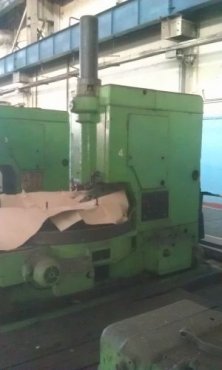

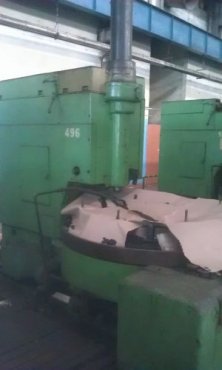

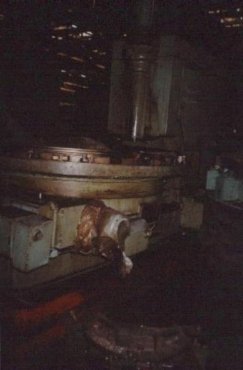

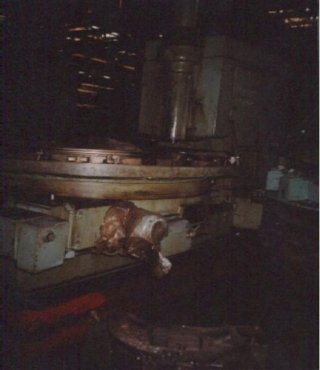

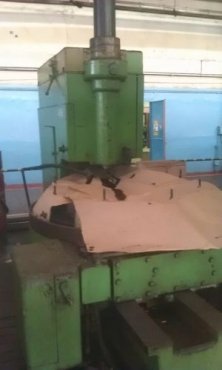

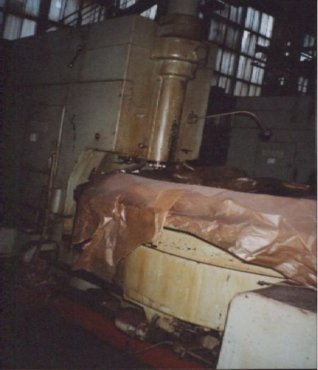

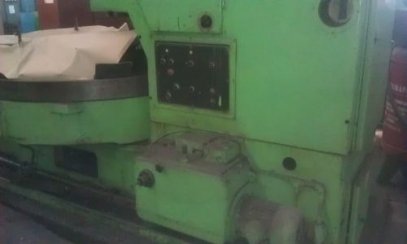

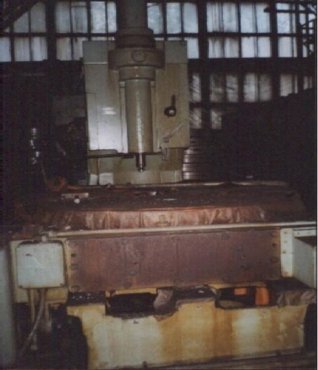

Gear shaper STANKO EZ-15B made in 1982. Country of origin: Russia.
Specifications:
Max diameter of work-piece: 2280 mm
Max width of gear ring: 170 mm
Max module: 12
Max cutter stroke: 200 mm
Faceplate diameter: 1900 mm
Dia of core hole table: 880 mm
Spindle double stroke frequency: 22-136/min
Range of radical table feed: 0.5-5mm/min
Table move high-speed: 205 mm/min
Max distance between axles and table: 1200 mm
Main motor power: 5.5 kW
