40 % advance payment, by order confirmation
60 % before loading the machine
warranty: 12 month

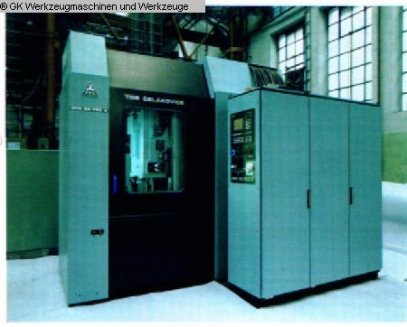

one general overhauled gear shaping machine, make TOS, type OHA 32 BA
Specifications:
max. module 6 mm
max. diameter of gearing to be shaped 320 mm
max. width of gearing to be shaped 80 mm
clamping table: diameter 320 mm
clamping table: bore 110 mm
max. table load 200 kg
ram slide: vertical travel 235 mm
ram slide: max. rame stroke 90 mm
ram slide: nominal cutter diameter 125 mm
ram slide: main motor output 12 kW
total power requirement 58 kVA
