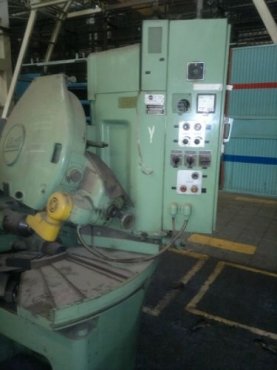

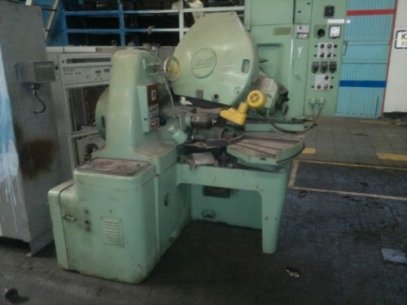

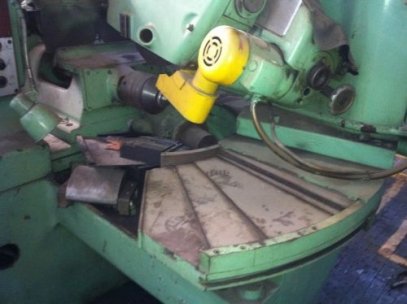

Universal shaver cutter grinding machine HURTH SRS 400 made in Germany.

Shaver cutter diameter: 64-320 mm
Module range: 1-12
Max shaver cutter width: 40 mm
Number of teeth: 13-240
Pitch block diameter: 73-320 mm
Speeds of work-piece slide: 5/20/30/40 teeth per min
Grinding slide speed: 690 rpm
Grinding slide diameter: 762 mm
Grinding wheel swivelling (pressure angle): 5-21 degrees
Grinding slide swivelling (helical angle): 2x35 degrees
Grinding slide adjustment, vertical: 240 mm
Cutting speed: 1/0.5/0.25 m/min
Spindle drive: 1.1 kW
Total power requirement: 3,9 Kw

2400x2800x2300 mm

4200 kg
