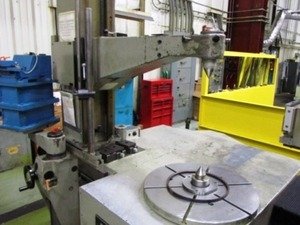

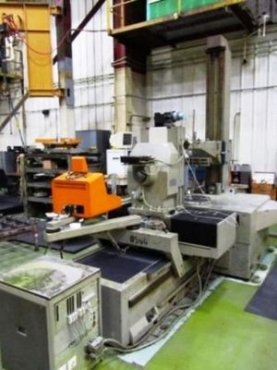

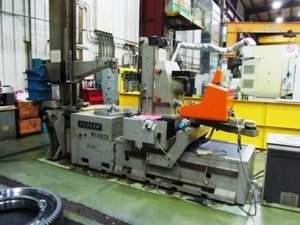

Max Base Circle Diameter: 74.8”
Min Base Circle Diameter: 7.87”
Max Test Piece Diameter: 78.7”
Max DP: .79
Min DP: 25.4
Max Helix Angle: 60 Degrees
Max Face Width: 15.7”
Max Vertical Adjustment (B): 23.6”
Max Distance Between Centers (E): 74.8”
Min Distance Between Centers (E): 8.27”
Max Height Over Center (G): 82.7”
Power Consumption: 1.5kVA
Max Table Load: 22,000 Lbs
Mac Table Diameter: 25.6”
Machine Weight: 16,500 Lbs
Machine Dimensions: 184”L x 96”W x 138”H
Equipped With:
Involute Testing
Index Testing
Lead Testing
External Gears
Tailstock

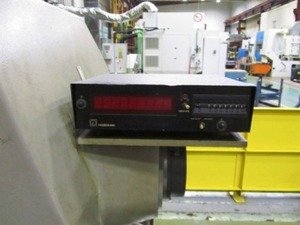

Heidenhien Scale
Pitranik PC4K01 Control
