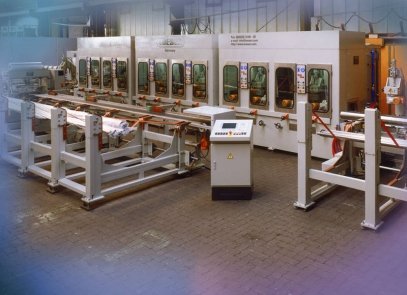

Model RPS 374

Diameter Range 10 - 80 mm

Special Version 1,3 mm up to 150 mm

Belt grinding motor 5,5 kW to 7,5 kW / 7,5 HP to 10 HP

Belt dimension 150 mm wide x 2500 mm, optional 3500 mm length

Workpiece transport system by V-Conveyor with vibration transport

Workpiece transport system by roller guide with pinch roll system

for secure and precise transport which eliminates a risk of spinning tubes

Patented pressure controlled grinding and polishing heads

Adjustable angle buffing heads with automatic wear compensation
