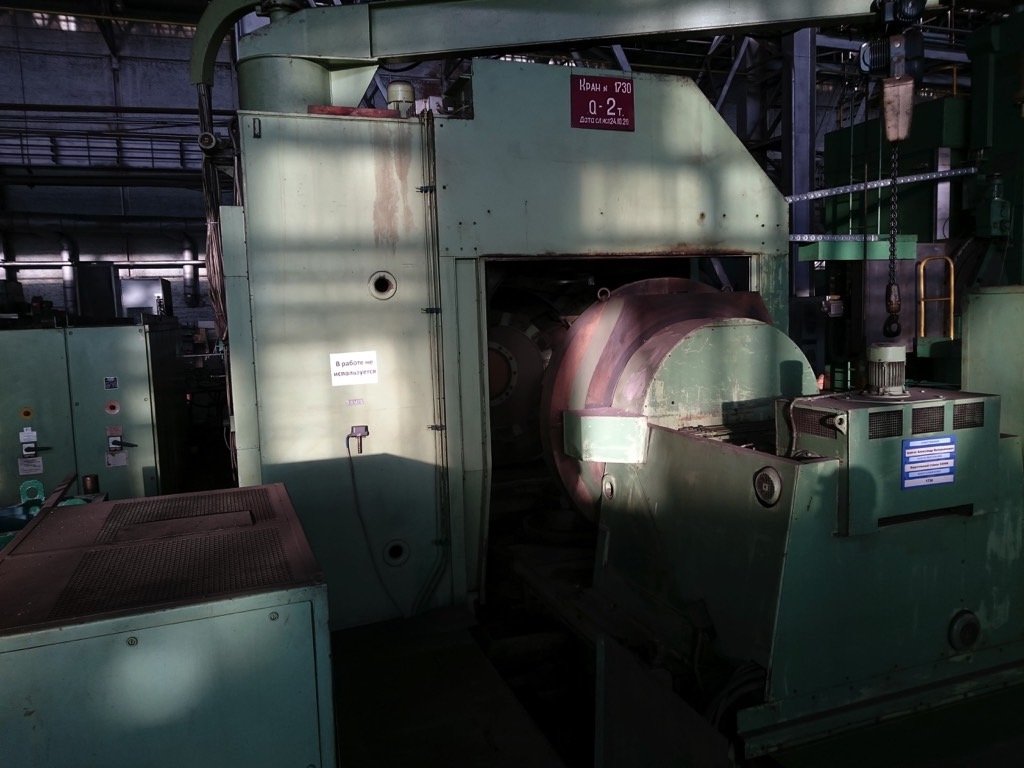

SCHIESS FRORIEP, 22DSK, CENTER GRINDING MACHINES, GRINDERS
  • Condition:Used
  • Category:GRINDERS
  • Type:CENTER GRINDING MACHINES
  • Manufacturer:SCHIESS FRORIEP
  • Model:22DSK
  • YOM:1981
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS29091
Description:

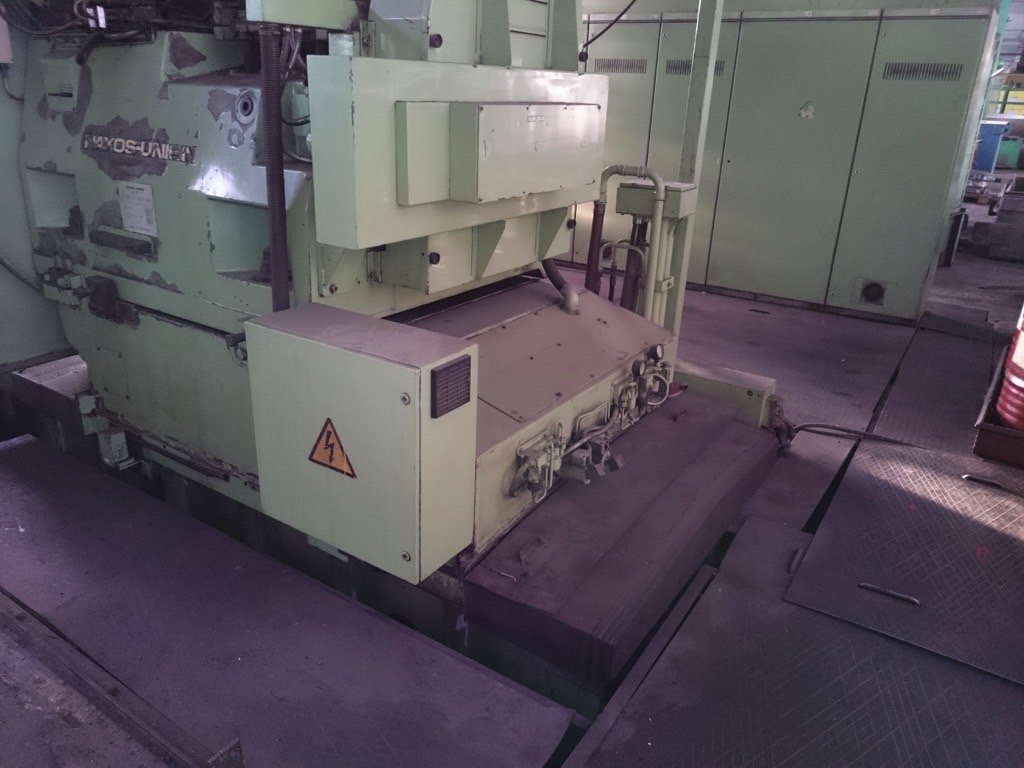

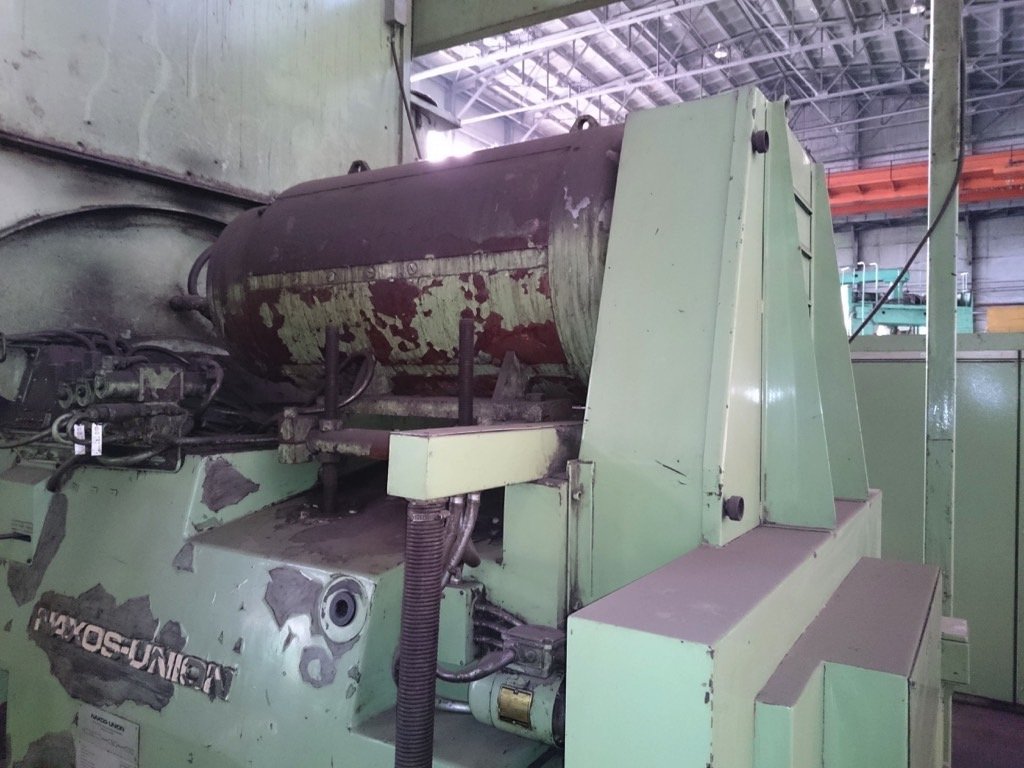

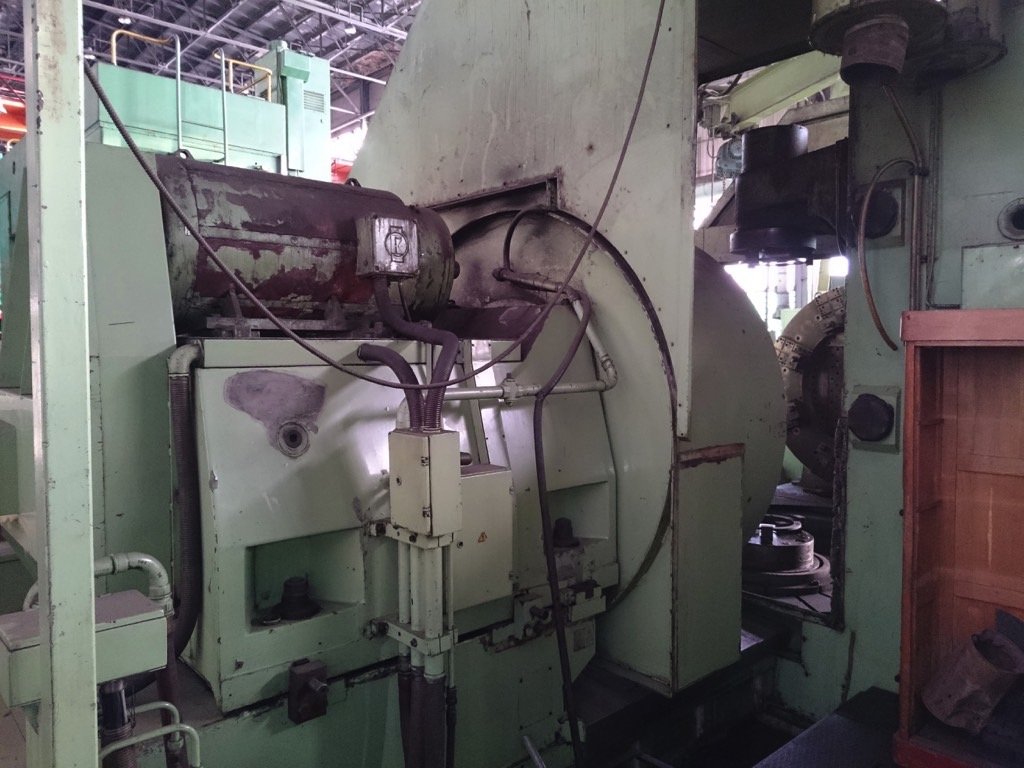

Spherical turning and grinding machine SCHIESS FRORIEP 22DSK. Made in: Germany. Table diameter: 1600 mm; Clamping diameter (of the table): -with external clamping (min/max.): 300/450 mm, -with internal clamping (min/max.): 400/500 mm; Workpiece height (max.): 2600 mm; Boring disk diameter: 1600 mm
Specifications:

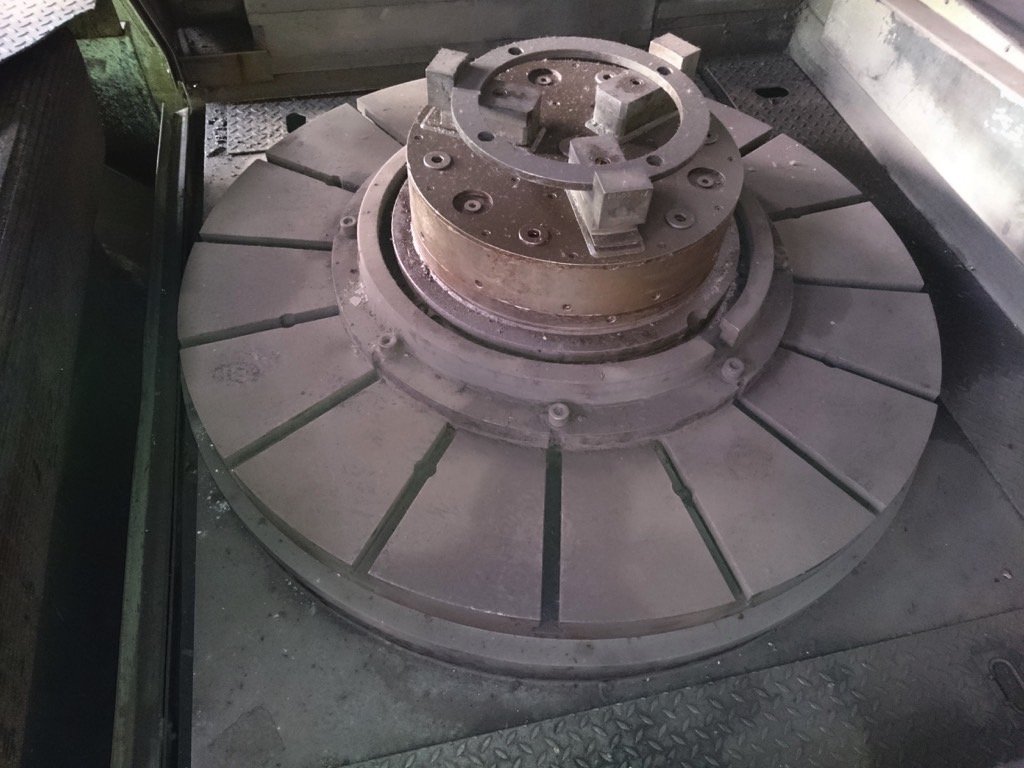

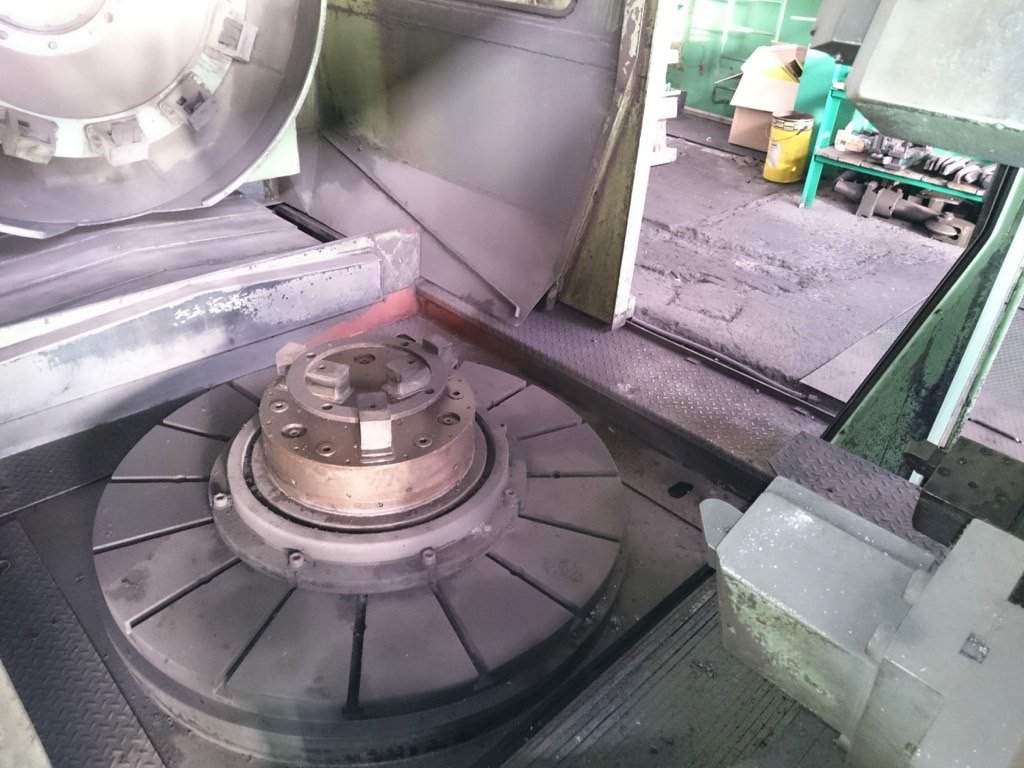

Table diameter: 1600 mm
Clamping diameter (of the table):
-with external clamping (min/max.): 300/450 mm
-with internal clamping (min/max.): 400/500 mm

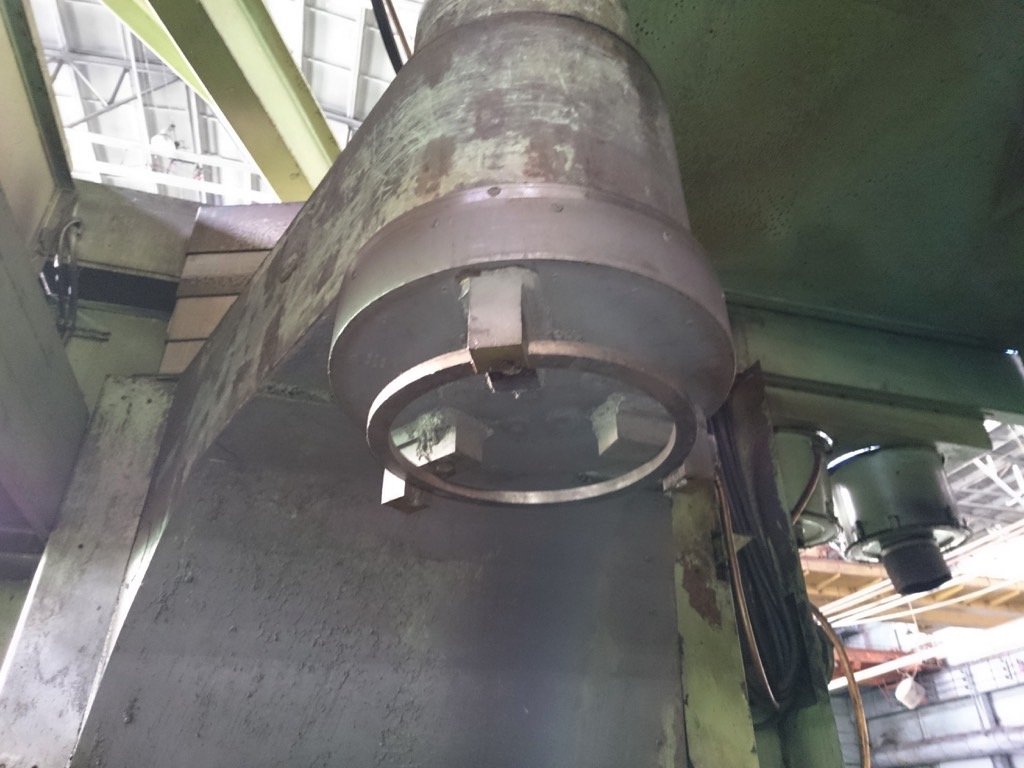

Clamping diameter (of the counter support):
-with external clamping (min/max.): 300/450 mm
-with internal clamping (min/max.): 300/400 mm
Bore diameter (max.): 2200 mm
Counter support movement track: 600 mm
Workpiece height (max.): 2600 mm

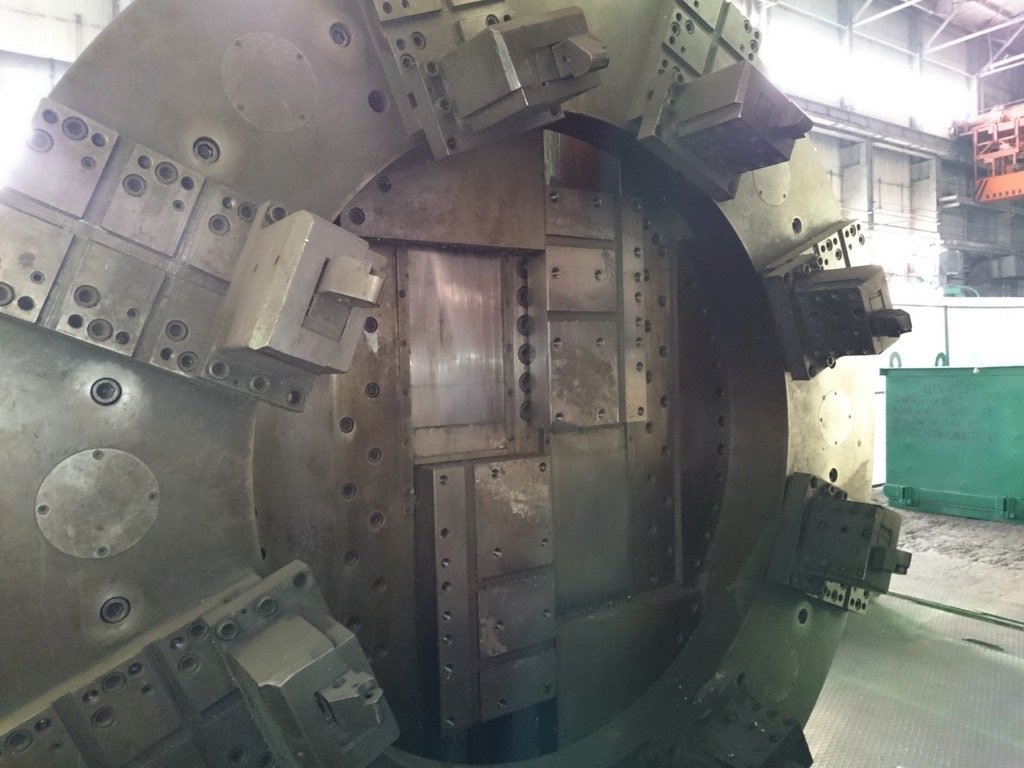

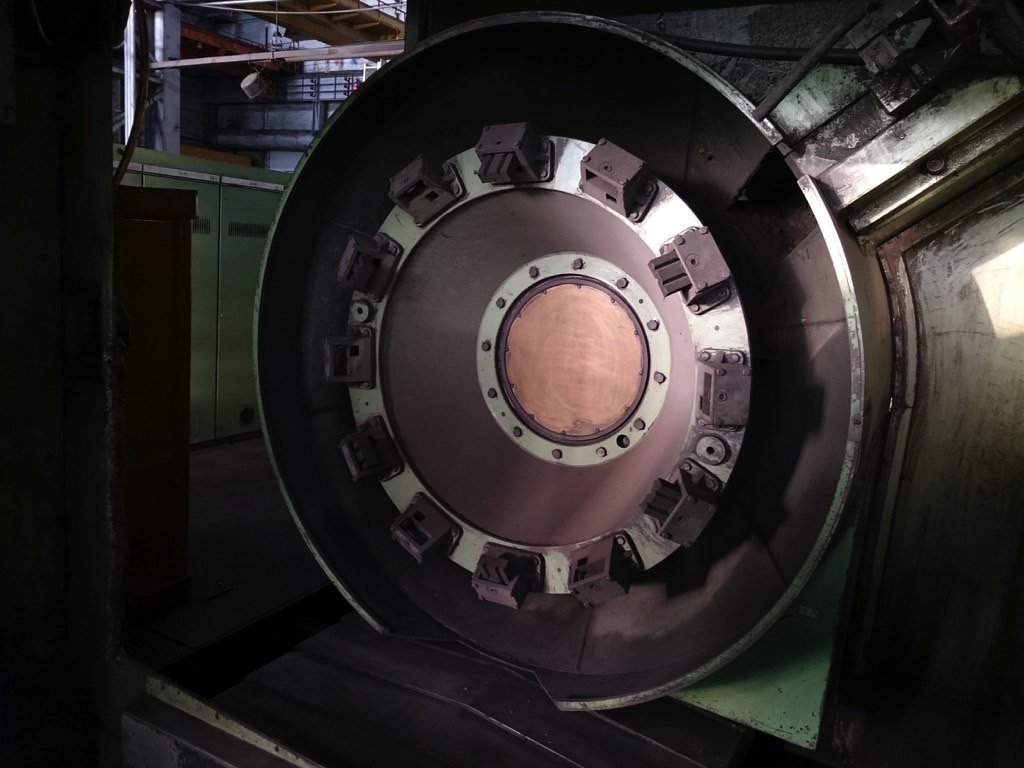

Boring disk diameter: 1600 mm
Boring slide movement track: 1000 mm
Sliders tool holders movement track: 825 mm
The height of the axis of the boring disk above the upper edge of the table: 1500 mm
