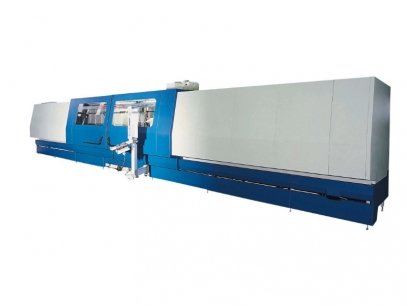

Grinding machine BUC 63 C Multi with program-controlled automatic rotation of grinding wheel head along vertical axis and CNC control system is intended for outer, resp. also inner grinding of workpieces clamped between centres or flying in clamping chuck in drive headstock. Automatic rotation of grinding wheel head fitted with more grinding wheels significantly expands technological potential of grinding machine.
Specifications:
Swing Ø 630 mm
Centre-to-centre distance max. 2 000, 3 000, 4 000,
5 000, 6 000 mm
Maximal weight of workpiece:
in centres max. 3 000 kg
in open rests * 4 000 kg
flying, incl. clamp, max. * 300 kg
Maximal weight of workpiece with heavy drive headstock and heavy tailstock: *
in centres 4 000 kg
with open heavy rests 5 000 kg
flying, incl. clamp 400 kg
