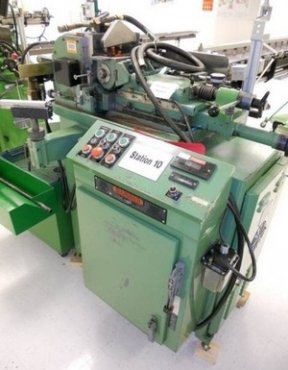

Glebar TF-9BHD, 1987, 9" x 8-5/8" Grinding Wheel, Grinding Range .002 - 4"

General Specifications As Per Brochure

Grinding Wheel: 9" Dia. x 8-5/8" Width
Regulating Wheel: 4"x 8 1/4"
Spindle Speed: 2400 RPM
Stock Size: 0.002" - 4"
Spindle Motor: 7 HP
Hydraulic System:
Pump Motor: 2 HP
Oil Pressure: 350 PSI
Hydraulic Tank: 15 Gal.
Electrical: 208-230/460V, 60 HZ, 3 PH
Dimensions (Approx.): 47" x 39" x 50"
Weight (Approx.): 1800 Lbs.

Equipped with (must be verified by buyer):
Coolant System

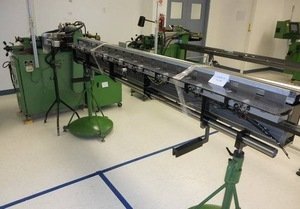

Note: Set up for thru-feed with in-feed using the rapid in-feed handle (back
wheel).

48" X 49" X 50" H

1800 LBS.
