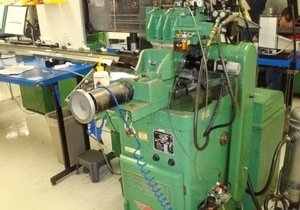

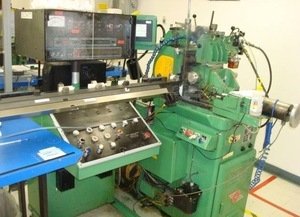

Royal Master TG12X3, 7.5 HP, 2040 RPM, 12' on .5" - Several Available!
Specifications:
General Specifications As Per Brochure
Capacity:
Infeed & Thrufeed: 0.004" to 1.5"
Length: 12' on 0.5"
Wheels:
Max. Grinding: 12" x 3"
Min. Grinding: 10" x 1/4"
Max. Regulating: 6" x 3"
Min. Regulating: 1/4" w/Spool
Spindle Speeds:
Grinding (Constant): 2040 RPM
Regulating (Inf. Variable): 25 to 480 RPM
Regulating Wheel Head:
Max. Angle of Tilt for Thrufeed: 6 Deg.
Max. Swivel for Taper: 5 Deg.
Floor Space (Approx.): 24" x 48"
Weight (Approx.): 2800 Lbs.
Equipped with (must be verified by buyer):
Chiller
